Product description

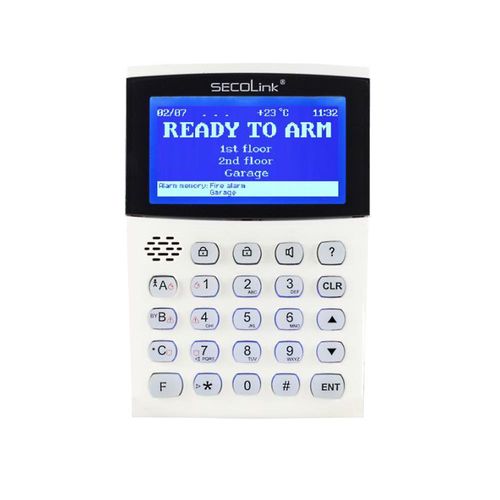

Keypad SECOLINK KM24G
Specifications
SKU
U-2527841
Product code
ASGKM24G
Supplier product description
- 2 wired zones
- 1 PGM output
- LCD screen
- Graphic display: 240 x 120 pixels
- 24 buttons
- Micro speaker
- USB interface
| On-Board zones | 2 |
| On-Board PGM | 1 (open collector up to 15 mA) |
| Ambient temperature measurement | Yes |
| LCD type | Graphic: 240 x 120 dots |
| Keys in keypad | 24 |
| Programmable fast keys (F-Keys) | 32 |
| Data bus protocol | KRBUS |
| Zone loop (detector) type | NC, NO, NC/EOL, NO/EOL, NC/DEOL, NO/DEOL |
| Maximum wiring distance to CP | 300 m |
| Power supply | 9 - 14 V |
| Voltage measurement on keypad | Yes |
| Current consumption | Backlight on 80 mA, Backight off < 68 mA. |
| On-Board sounder | Speaker |
| Backlight color | Display = blue, keypad = blue |
| Character set | Major character sets of the world. |
| User interface type | Navigation menu with short help text system. |
| Overall dimensions W x H in mm | 92 x 133 |
| Environmental compliance | ROHS |
| Operating temperature | 0oC up to +50oC |
| Interface for keypad settings programming | USB |
| Interface for keypad firmware updating | USB |
Supplier parameters
Product code
ASGKM24G
Category
Keypads
Supplier's product code
ASGKM24G
Product ID
U-2527841
