Product description
UT510 Series Insulation Resistance Testers
UT510 series testers can measure insulation resistance of large transformers, generators, high-voltage motors and more. UT510 series can also measure PI, DAR and other important specifications. Measured data can then be analyzed through PC software. UT513A can produce test voltage up to 5kV.
Models in UT510 series: UT511, UT512, UT513A
Features of UT510 Series Insulation Resistance Testers
Certifications: CE, UKCA
● Large 9999 display with 30-segment analog bar graph
● PI/DAR measurements
● Comparison, upper and lower limit functions
● Continuous measurement mode
● Auto power off
● 18-group data storage
● Backlight
● Auto current discharge and high-voltage output alarm
● Time measurement mode, auto measure within 15 minutes
● Low battery and over range indications
Specifications of UT510 Series Insulation Resistance Testers
|
Specifications |
Range |
UT511 |
UT512 |
UT513A |
|
|
Insulation resistance (Ω) |
Test voltages |
100V~1000V |
0%~10% |
||
|
500V~2500V |
0%~20% |
||||
|
500V~5000V |
0%~20% |
||||
|
100V |
0.1MΩ~500MΩ |
±(3%+5) |
|||
|
250V |
0.5MΩ~2GΩ |
±(3%+5) |
|||
|
500V |
1MΩ~4GΩ |
±(3%+5) |
|||
|
0.5MΩ~5GΩ |
±(3%+5) |
||||
|
0.5MΩ~20GΩ |
±(3%+5) |
||||
|
1000V |
2MΩ~10GΩ |
±(3%+5) |
±(3%+5) |
||
|
1MΩ~40GΩ |
±(3%+5) |
||||
|
1500V |
5MΩ~20GΩ |
±(3%+5) |
|||
|
2500V |
2.5MΩ~100GΩ |
±(3%+5) |
|||
|
10MΩ~100GΩ |
±(3%+5) |
||||
|
5000V |
5MΩ~1000GΩ |
±(3%+5) |
|||
|
DC voltage (V) |
1000V |
±(2%+3) |
|||
|
600V |
±(2%+5) |
±(2%+3) |
|||
|
AC voltage (V) |
750V |
±(2%+3) |
|||
|
600V |
±(2%+5) |
±(2%+3) |
|||
|
Short-circuit current |
<2mA |
<1.8mA |
>3mA |
||
|
Low resistance (Ω) |
0.1Ω~999.9Ω |
±(1%+3) |
|||
|
Features |
|||||
|
Auto range/Auto power off |
√ |
√ |
√ |
||
|
Test voltage secondary display |
√ |
||||
|
Low battery indication |
√ |
√ |
√ |
||
|
Data storage |
18 |
18 |
18 |
||
|
Comparison measurement |
√ |
√ |
√ |
||
|
Polarization index (PI) |
√ |
√ |
√ |
||
|
Dielectric absorption ratio (DAR) |
√ |
√ |
√ |
||
|
USB interface |
√ |
√ |
|||
|
Analog bar graph |
30 |
30 |
30 |
||
|
LCD backlight |
√ |
√ |
√ |
||
|
Over-range warning |
√ |
√ |
√ |
||
|
High voltage indication |
√ |
√ |
√ |
||
|
Timing measurement |
Around 30 minutes |
√ |
|||
|
Around 15 minutes |
√ |
√ |
|||
|
Meets IEC 61557 |
UT513A: 61557-1:2007; 61557-2:2007 |
||||
|
General Characteristics |
|||||
|
Power |
1.5V battery (LR14) x 8 |
||||
|
Display |
123mm x 58mm |
||||
|
Product color |
Red and grey |
||||
|
Product net weight |
UT511: 1.2kg; UT512: 1.8kg; UT513A: 2kg |
||||
|
Product size |
202mm x 155mm x 94mm |
||||
|
Standard accessories |
2pcs of one plug test lead to one alligator clip (black and green), 1pcs of two plugs test lead to one alligator clip (red), batteries, USB cable (UT512/UT513A), PC software CD (UT512/UT513A), power adaptor (UT512/UT513A) |
||||
|
Standard individual packing |
Gift box, tool box, English manual |
||||
|
Standard quantity per carton |
4pcs |
||||
|
Standard carton measurement |
505mm x 345mm x 345mm |
||||
|
Standard carton gross weight |
UT511: 13.4kg; UT512: 15.9kg; UT513A: 18.9kg |
||||
|
Optional accessories |
Power adaptor (UT511) |
||||
,
Useful information
Specifications
Experimental product description generated by artificial intelligence

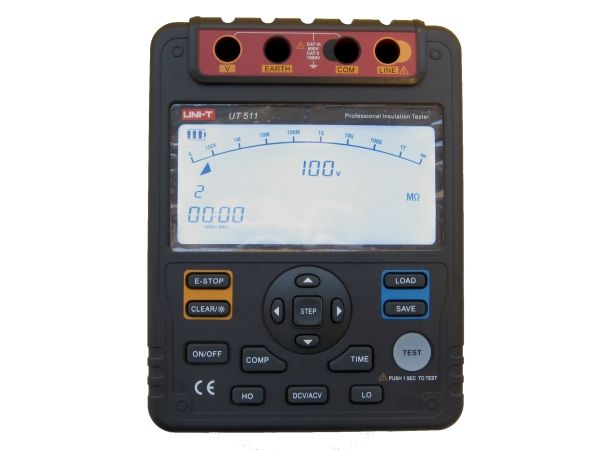

UNI-T UT511 CATII, CATIII Insulation Resistance Tester
The UNI-T UT511 is a professional insulation resistance tester, also known as a megohmmeter, designed for reliable and accurate measurements. This handheld instrument is ideal for various applications requiring testing of insulation resistance.
Key Features and Functions
- CAT II 1000V and CAT III 600V safety rating: Ensures safe operation in various environments.
- Multiple measurement modes: Offers continuous, timed, and polarization index (PI) measurements for comprehensive analysis.
- Clear and easy-to-read display: Provides clear readings with a backlight for optimal visibility.
- Data storage: Stores multiple readings for later review and analysis.
- Durable and portable design: Built for rugged use and easy portability.
Uses
The UT511 insulation resistance tester is suitable for a wide range of applications, including:
- Electrical equipment maintenance and testing
- Industrial applications
- Automotive diagnostics
- HVAC/R systems testing
Why Choose the UNI-T UT511?
The UNI-T UT511 provides a combination of safety, accuracy, and ease of use, making it a valuable tool for professionals and technicians. Its multiple measurement modes and data storage capabilities offer comprehensive testing solutions. The durable design ensures long-lasting performance in demanding environments.
| Feature | Description |
|---|---|
| Safety Rating | CAT II 1000V, CAT III 600V |
| Measurement Modes | Continuous, Timed, PI |
| Display | Digital and Analog Bar Graph |
| Data Storage | Yes |
