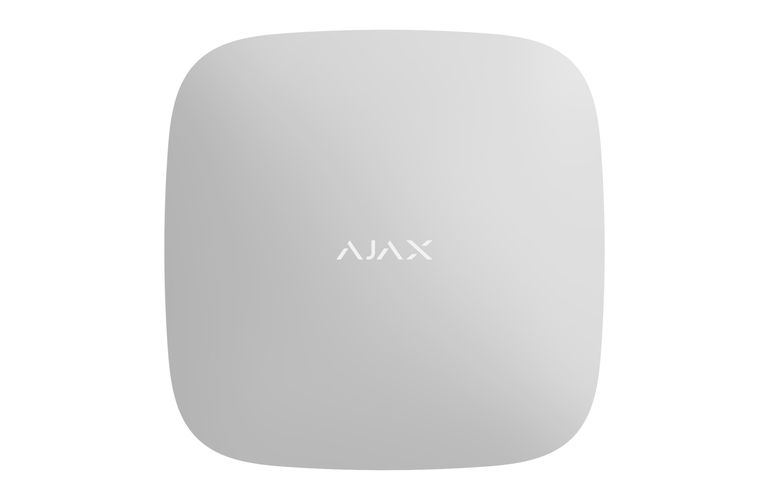

Hub 2 security system control panel with support for photo verification

Hub 2 manages all the Ajax devices in the system to alert users about open doors, broken windows, threats of fire and flooding. If burglars break into your facility, Hub 2 will notify the monitoring station 1and send photos from the MotionCam detectors. You won’t need to live under the constant supervision of the security cameras to know what’s going on.

Remote configuration and control
Alarm photo verification in 9 seconds
Alarm in 0.15 seconds
PRO anti-sabotage: tampers, pings, authentication
Hassle-free installation
9 security groups
50 users
100 devices in the system
2000 m of radio communication range
Flexible security management of the facility
Security automation
Flood prevention system
Automatic doors and roller shutters
Alarm-triggered site illumination
3 independent communication channels out of the box: 2 x 2G SIM; Ethernet
Up to 16 hours of backup battery life
Devices polling from 12 s
Detection of hub connection loss in 60 s
OS Malevich: new features with every update

Alarm photo verification in 9 seconds

Hub 2 works with MotionCam and MotionCam Outdoor motion detectors. When detectors are triggered, they take a series of photos. It helps to evaluate the situation at the facility. Visual verification helps you instantly assess the situation, relieving users of unnecessary anxiety, and security companies — from false calls of patrols.
1. Motion detected
2. Alarm triggered
3. Evidence captured

Always connected — via cable and cellular networks

Communication with the outside world is critical for the security system control panel. Its reliability and stability guarantee timely alarm transmission to the security company and users.
Hub 2 can be simultaneously connected to three Internet service providers — via Ethernet cable and 2G, 3G, and LTE 2 cellular networks. The automatic switching between channels takes seconds.

Guaranteed delivery of alarms and visual alarm verifications

To ensure reliable communications, we have equipped Hub 2 with four antennas and support of two proprietary radio protocols: Jeweller and Wings. Jeweller is responsible for the transmission of commands, events, and alarms, while Wings provides batch transmission of images. Ajax two-way radio communication uses frames to synchronize device communication sessions, authentication to prevent fraud, and encryption to protect against data theft.

Flexibility at the core

The Hub 2 radio network covers several floors and separate buildings — thanks to the communication range of 2,000 meters and the ability to connect five range extenders. To manage access and security zoning of the facility, the hub allows connecting 50 users and creating 9 security groups. Hub 2 is a perfect choice for home and business security.

Controlled with apps

We refrained from control buttons on the control panel body and archaic interfaces — apps are more convenient and reliable. They connect to a hub via a secure channel through the Ajax Cloud server located in several AWS data centres. Server availability in 2021 was 99.995%.
Apps allow system users with administrator rights to manage the security of the facility, change settings of the hub and the devices connected to it, create scenarios, and monitor events. From a smartphone or a PC. On the site and remotely.

Automates security

Hub 2 allows creating 32 scenarios and minimizing the impact of human factor on security. The hub can arm and disarm a facility or a group by schedule. Instantly activate a smoke machine if someone enters the premises. Blackout the premises and turn on emergency lighting in case of fire. Or shut off the water in case of a leak. Control lights, electric locks, roller shutters, and garage doors — by arming/disarming, button press, or a detector alarm.

Resistant to sabotage

Whatever happens to Hub 2, the security company and the users will be notified. No one can disconnect the hub unnoticed when the facility is disarmed. If an intruder attempts to dismount the device, this will trigger the tamper immediately. The Ajax Cloud server can notify about the loss of connection with the hub in 60 seconds due to frequent polling. Even if the building is de-energized, the hub will protect the object for up to 16 hours with a built-in backup battery.

OS Malevich - Future-proof

Hub 2 runs OS Malevich — a real-time operating system developed by Ajax Systems. OS Malevich is extremely stable, immune to viruses, and protected from cyberattacks. Modular architecture simplifies the constant upgrading of OS Malevich.
Hub receives new features several times a year with over-the-air updates. The update process is automatic and takes minutes when the security system is disarmed. The hardware configuration will allow Hub 2 to evolve and remain relevant for years to come.

Hassle-free installation

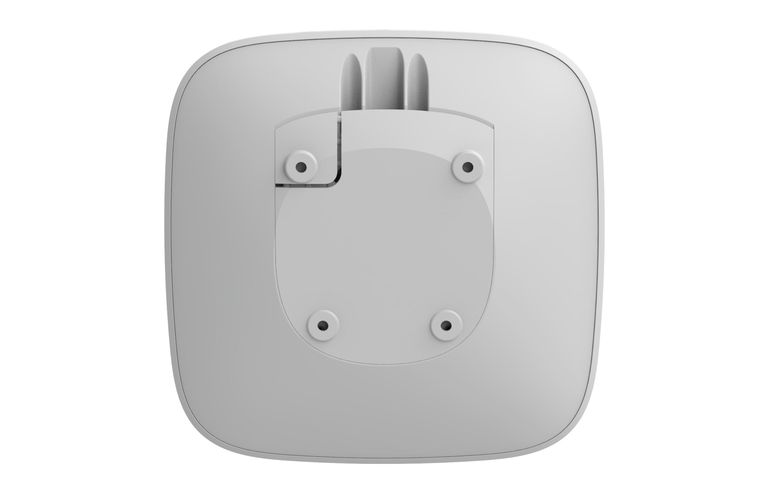

Hub 2 is ready to operate out of the box. All communication modules, power supply, and backup battery are already installed. To start setting up the system, you need to connect the device to the power supply and the Internet, insert the SIM cards, and scan the QR code through the app. With the SmartBracket mounting panel, there is no need to disassemble the device body during installation.
Connecting security devices, video cameras, users, testing the radio signal, creating groups and scenarios, even sending a request for connection to the CMS — all system settings are always available in the Ajax apps. Whether you are at the site or not.

Technical data

Hub is designed for indoor installation only
Wireless Ajax devices: up to 100, specifically, up to 10 sirens and 5 range extenders.
IP cameras or DVRs; up to 25, seamless integration with Dahua, Hikvision, Safire, EZVIZ, Uniview IP cameras, and DVRs, RTSP support.
Users: up to 50, any number of admin users within the hub limit, PRO accounts for installers, PRO accounts for installation and monitoring companies, Access management for users
Automation scenarios: up to 32, alarm responses, scheduled actions, security mode changing reactions, temperature changing reactions, humidity changing reactions, reactions to changes in CO₂ concentration, reactions to pressing Button
Security groups: up to 9
Rooms: up to 50
Wireless communication: Jeweller communication technology
Frequency bands: 866.0–866.5 MHz, 868.0–868.6 MHz, 868.7–869.2 MHz, 905.0–926.5 MHz, 915.85–926.5 MHz, 921.0–922.0 MHz, depends on the sales region
Maximum effective radiated power (ERP): up to 20 mW, featured automatic power control to reduce power consumption and noise interference
Radio signal range: up to 2,000 m, between the hub and connected devices (in an open space), maximum range depends on the connected device
Polling interval: from 12 to 300 s, adjusted by PRO or user with admin rights in the Ajax apps
Encrypted communication: block encryption with a dynamic key protects all the stored and transmitted data
Frequency hopping: prevents radio interference and radio signal interception
Wings communication technology: proprietary wireless communication technology to transmit photo verifications
Operating voltage: 110–240 V~, 50/60 Hz
Built-in backup battery: Li-ion 3 Аh, up to 15 hours of offline operation when Ethernet is disconnected
Alternative power supply: 6 VDC, 12 V DC (connected via an alternative power supply unit, sold separately)
Ethernet: 1 8P8C socket, up to 100 Mbps
Cellular: 2 micro-SIM slots, 2G
Automatic switching: between Ethernet and SIM — instantly, between SIMs — up to 4 minutes
Supported notification types: push, SMS, calls
Event types: alarms, malfunctions, security mode changing, system events, non-security alerts, automation devicesʼ events (the notification types are configured individually for each user)
Photo verification types: photo by alarm, photo by scenarios, photo on demand
Photo delivery time: up to 9 s by default
Photo resolution: up to 640 × 480 pixels (depends on the detector)
Number of photos in a series: from 1 to 5 pictures
Supported protocols: SIA (DC-09), SurGard (Contact ID), ADEMCO 685, other proprietary protocols
Event types, system alarms and events, panic button coordinates, photo verification
Anti-sabotage: tamper alarm, protection against spoofing, frequency hopping
Dimensions: 163 × 163 × 36 mm
Weight: 362 g
Operating temperature range: from −10°C to +40°C
Operating humidity: up to 75%
Protection class: IP20
