Hikvision NVR DS-7716NXI-I4/16P/S(E)
Product Code: NVRDS7716NXII416PSE
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description

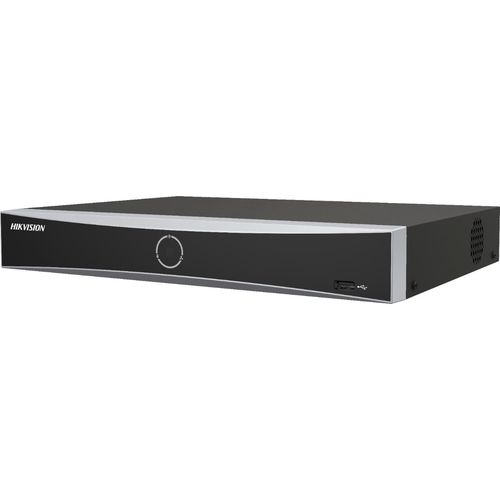

Hikvision NVR DS-7716NXI-I4/16P/S(E)
Specifications
Supplier product description
- H.265+/H.265/H.264+/H.264 video formats
- 16 PoE channels
- Intelligent analytics based on deep learning algorithm
- Up to 4-ch perimeter protection
- Up to 1-ch facial recognition for video stream, or up to 4-ch facial recognition for face picture
- Up to 16-ch IP camera inputs
- Plug & Play with 16 Power-over-Ethernet (PoE) interfaces
- Up to 16-ch 1080p decoding capability
- Up to 160 Mbps incoming bandwidth
- Facial Recognition
- Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
- Face Picture LibraryUp to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB)
- Facial Detection and Analytics Performance1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265)
- Face Picture Comparison4-ch face picture comparison alarm
- Motion Detection 2.0
- Human/Vehicle Analysis16-ch
- Perimeter Protection
- Human/Vehicle Analysis
Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;
Up to 12 rules in total
- Video and Audio
- IP Video Input
16-ch
Up to 12 MP resolution
- Incoming Bandwidth160 Mbps
- Outgoing Bandwidth256 Mbps
- HDMI 1 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output
- HDMI 2 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI2/VGA independent output
- VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
HDMI1/VGA simultaneous output
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Decoding
- Decoding FormatH.265+/H.265/H.264+/H.264
- Recording Resolution12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback16-ch
- Decoding Capability16-ch @ 1080p (30 fps)
- Dual-Stream RecordingSupport
- Stream TypeVideo, Video & Audio
- Live View Window Division1/2/4/6/8/9/16
- Aux Port Window Division1/2/4/6/8/9/16
- Playback ModeNormal/Smart, Event, Tag, Eternal File
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/MP2L2
- Network
- Remote Connection128
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnPâ„¢, HTTP, HTTPS
- Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- PoE
- Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power≤ 200 W
- StandardIEEE 802.3 af/at
- Auxiliary Interface
- Serial InterfaceRS-485 (half-duplex), RS-232, Keyboard
- SATA4 SATA interfaces supporting hot-plug
- eSATA1 eSATA interface
- CapacityUp to 10 TB capacity for each disk
- Alarm In/Out16/4
- USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- General
- Power Supply
100 to 240 VAC, 50 to 60 Hz
Total power: ≤ 360 W
- Consumption≤ 30 W (without HDD)
- Working Temperature-10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
- Working Humidity10% to 90%
- Chassis19-inch rack-mounted 1.5U chassis
- Dimension (W × D × H)445 × 400 ×75 mm ( 17.5"× 15.7" × 3.0")
- Weight≤ 7 kg (15.4 lb) (without HDD)
- Certification
- FCCPart 15 Subpart B, ANSI C63.4-2014
- CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
Supplier parameters
Product code
NVRDS7716NXII416PSE
Category
16 Channel NVR
Brand
Hikvision
Supplier's product code
NVRDS7716NXII416PSE
Product ID
U-3775407
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
