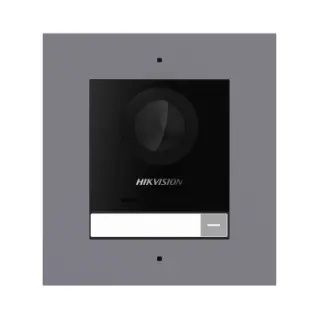

Hikvision DS-KD8003-IME1(B)/Flush
Product Code: PSKKD8003IME1BFL
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Hikvision DS-KD8003-IME1(B)/Flush
Specifications
Supplier product description
- Type: Camera Passage System
- Model: Hikvision DS-KD8003-IME1(B)
- Installation: Concealed
- Resolution: 2 MP
- Lens: Fisheye
- Viewing angle: 146°
- Infrared distance: 3 m
- Sound: Audio in/out
- Power supply: PoE
- Alarm inputs: 4 x alarm
- Water resistance: IP65
- System parameters
- Operation systemLinux
- ROM32 MB
- RAM256 MB
- ProcessorEmbeded high performance processor
- Display parameters
- Screen size/
- Operation method/
- Type/
- Resolution/
- Video parameters
- Lens2 MP HD camera
- Resolution2 MP
- FOVHorizontal: 146°, Vertical: 82°
- Wide dynamic range (WDR)Support
- Supplement lightLow illumination, IR supplement lights
- Video compression standardH.264
- Audio parameters
- Audio input1 built-in omnidirectional microphone
- Audio compression standardG.711 U/G.711 A
- Audio output1 built-in loudspeaker
- Audio compression bitrate64 Kbps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- User capacity2000
- Face capacity/
- Fingerprint capacity/
- Card capacity6000
- Message capacity/
- Linked indoor station capacity500
- Sub door station capacity16
- Network parameters
- Network protocolTCP/IP, RTSP
- Ethernet10/100 Mbps Self-Adaptive Ethernet
- Wi-Fi/
- Bluetooth/
- 3G/4G/
- Device interfaces
- Alarm input4 (2 exit buttons and 2 door contacts by default)
- Network interface1 RJ-45, 10/100 Mbps self-adaptive
- TAMPER1
- Exit button2 (2 for lock control)
- RS-4851 (1 for Hikvision's sub module communication)
- USB/
- Wiegand/
- TF card/
- Alarm output2
- Lock control2 relays, Max. 30 VDC, 2 A
- Door contact input2
- Two-Wire IP interface/
- General
- Button1
- InstallationFlush mounting
- Indicator/
- Weight
Net weight: 0.375 kg
Gross weight: 0.853 kg
- Protective levelIP65
- Working temperature-40 °C to 60 °C (-40 °F to 140 °F)
- Battery/
- Power supply12 VDC, 500 mA, IEEE 802.3af, PoE
- Application environmentOutdoor
- Power consumption≤ 5 W
- LanguageEnglish,French,Portuguese,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Slovak
