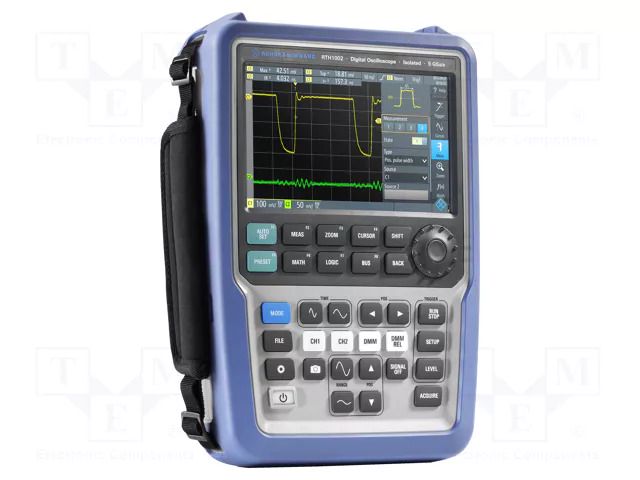

Handheld oscilloscope; Band: 100MHz; 9bit; colour,LCD TFT 7" ROHDE & SCHWARZ
Product Code: RTH1012MSO
Brand
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Brand
Handheld oscilloscope; Band: 100MHz; 9bit; colour,LCD TFT 7" ROHDE & SCHWARZ
Useful information
Specifications
Supplier product description
Handheld oscilloscope; Band: 100MHz; 9bit; colour,LCD TFT 7"
Useful information
Supplier parameters
Product code
RTH1012MSO
Brand
ROHDE & SCHWARZ
Supplier's product code
RTH1012MSO
Product ID
U-315222
#Promotion
utrzymanie_ruchu_20200714
AC voltage measuring accuracy
±(0.02% + 0.05% range)
AC voltage measuring range
1kV
Additional functions
multimeter
Band
100MHz
Battery/ rechargeable battery
rechargeable battery Li-Ion x1
Body dimensions
201x293x74mm
Capacitance measuring accuracy
±(1%+ 0.05% range)
Capacitance measuring range
10mF
Conform to the norm
EN 61010
Connectors for the country
USA
Continuity test
acoustic indication
DC voltage measuring accuracy
±(0.05% + 0.03% range)
DC voltage measuring range
1kV
Diode test
3V
Display resolution
800x480
Frequency measuring accuracy
±0.005%
Frequency measuring range
10kHz
Input coupling
AC, DC
Input impedance
1MΩ/12pF
Input sensitivity
2mV/div...100V/div
Interface
USB
IP rating
IP51
Kind of display used
colour
Manufacturer
ROHDE & SCHWARZ
Manufacturer series
RTH Scope Rider
Max. input voltage
300V
Measurement
AC voltage
Measuring instrument features
datalogging
Memory record length
500kpts
Number of channels
2
Plug variant
EU
Power supply
rechargeable battery Li-Ion x1
Resistance measuring accuracy
±(0.08%+0.03% range)
Resistance measuring range
10kΩ
Rise time
≤3.5ns
Sampling
2,5Gsps
Software
dedicated mobile app
Standard equipment
power supply
Storage temperature
-20...50°C
Supply voltage
100...240V AC
Temperature measurement accuracy
±(0.13% + 1°C)
Temperature measuring range
-200...850°C
Time base
1n...500s/div
Type of oscilloscope
handheld oscilloscope
Touchpad
yes
Trigger
rising-edge
Trigger coupling
AC
Trigger modes
automatic
Trigger source
CH1
Vertical resolution
9bit
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
