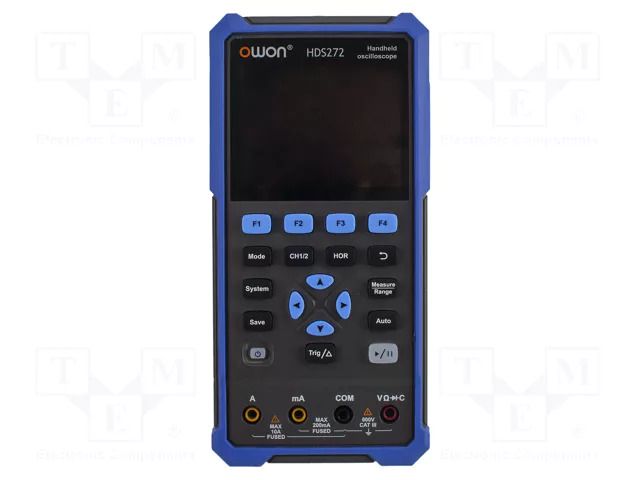

Handheld oscilloscope; 70MHz; 8bit; LCD 3,5"; Ch: 2; 250Msps; 8kpts OWON
Product Code: HDS272S
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Handheld oscilloscope; 70MHz; 8bit; LCD 3,5"; Ch: 2; 250Msps; 8kpts OWON
Useful information
Specifications
SKU
U-2308522
Product code
HDS272S
Supplier product description
Handheld oscilloscope; 70MHz; 8bit; LCD 3,5"; Ch: 2; 250Msps; 8kpts
Useful information
Supplier parameters
Product code
HDS272S
Supplier's product code
HDS272S
Product ID
U-2308522
AC current measuring accuracy
±(1% + 10 digit)
AC current measuring range
10A
AC voltage measuring accuracy
±(0.8% + 10 digit)
AC voltage measuring range
750V
Additional functions
function generator
Band
70MHz
Capacitance measuring accuracy
±(3%+ 10 digit)
Capacitance measuring range
200µF
DC current measuring accuracy
±(0.8% + 10 digit)
DC current measuring range
10A
DC voltage measuring accuracy
±(0.3% + 5 digit)
DC voltage measuring range
1kV
Dimensions
198x96x38mm
Input coupling
AC, DC, GND
Input impedance
1MΩ/16pF
Kind of display used
LCD 3,5"
Manufacturer
OWON
Manufacturer series
HDS200
Measurement
AC voltage
Memory record length
8kpts
Number of channels
2
Power supply
rechargeable battery Li-Ion 18650 3,7V 2200mAh x2
Resistance measuring accuracy
±(0.8%+3 digit)
Resistance measuring range
200Ω
Rise time
≤5ns
Sampling
250Msps
Standard equipment
case
Type of oscilloscope
handheld oscilloscope
Trigger modes
automatic
Vertical resolution
8bit
Waveform frequency range
0,1Hz...25MHz (sinus waveform)
Waveforms
rectangular
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
