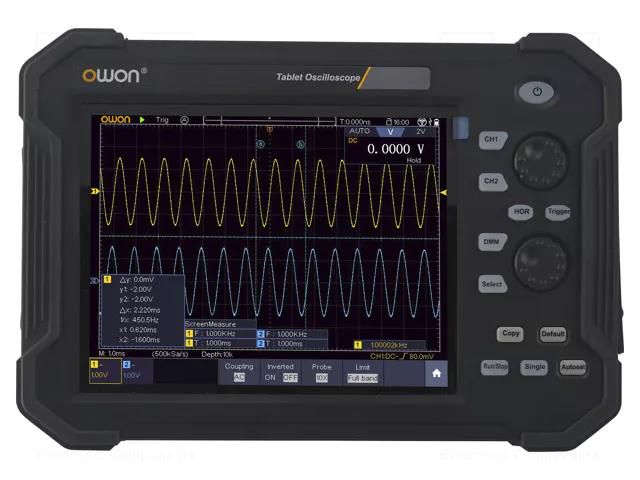

Handheld oscilloscope; 100MHz; 8bit; LCD TFT 8"; Ch: 2; 1Gsps OWON
Product Code: TAO3102
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Handheld oscilloscope; 100MHz; 8bit; LCD TFT 8"; Ch: 2; 1Gsps OWON
Useful information
Specifications
SKU
U-2170459
Product code
TAO3102
Supplier product description
Handheld oscilloscope; 100MHz; 8bit; LCD TFT 8"; Ch: 2; 1Gsps
Useful information
Supplier parameters
Product code
TAO3102
Supplier's product code
TAO3102
Product ID
U-2170459
Additional functions
multimeter
Band
100MHz
Dimensions
270x191x48mm
Display resolution
800x600
Input coupling
AC, DC, GND
Input impedance
1MΩ/15pF
Input sensitivity
1mV/div...10V/div
Interface
SPI
Kind of display used
LCD TFT 8"
Manufacturer
OWON
Manufacturer series
TAO3000
Measurement memory
100
Measuring instrument features
mathematical functions: addition, subtraction, division, multiplication and FFT
Memory record length
40Mpts
Number of channels
2
Plug variant
EU
Power supply
rechargeable battery Li-Ion 7,4V 8000mAh x1
Rise time
≤3.5ns
Sampling
1Gsps
Software
LabVIEW
Standard equipment
mains cable
Time base
1n...1ks/div
Type of oscilloscope
handheld oscilloscope
Touchpad
yes
Trigger
video signal
Trigger modes
automatic
Trigger source
CH1
Vertical resolution
8bit
