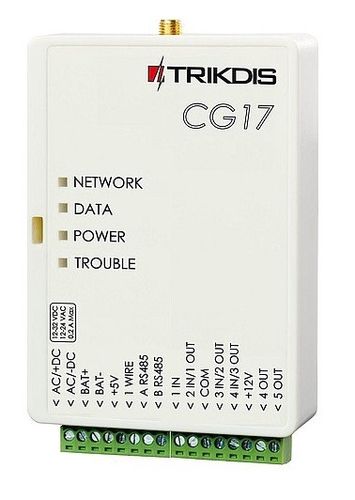

GSM controller CG17 Trikdis

• Communicator that informs customers about security system events with Protegus app or with SMS and/or Voice messages.

• Communicator that transmits full event reports to Alarm Receiving Centre (ARC).

• Controller for remote control gates, AC, heating and ventilation systems, lawn watering etc. via cellular network.

• Control panel for intrusion and fire alarming system that allows to monitor and control (ARM/DISARM) alarm system remotely.


Technical data

Power supply voltage - 16-24 VDC, 16-18 VAC;
Current standby mode 50 mA, transmitting mode up to 200 mA;
GSM modem frequencies - 850 / 900 / 1800 / 1900 MHz;
3G modem frequencies - 800 / 850 / 900 / 1900 / 2100 MHz;
Communication with  ARC - Encrypted TCP/IP or UDP/IP, SMS
Battery charging current - Max 500 mA
Event encryption, key - TRK / 6 symbol key
Memory - Up to 60 messages
Inputs (max internal) - Up to 4 selectable type input: NC, NO, EOL (10kΩ)
Outputs (max internal) - Up to 5  x OC type outputs, (1 OUT, 2 OUT, 3 OUT – 100 mA; 4 OUT, 5 OUT – 1 A)
Event transmission - Contact ID codes
Encryption key - 6 symbols encryption key
Operating environment - From -10 °C to 50 °C, with relative air humidity 80% when +20 °C
Dimensions - 95x65x25 mm
