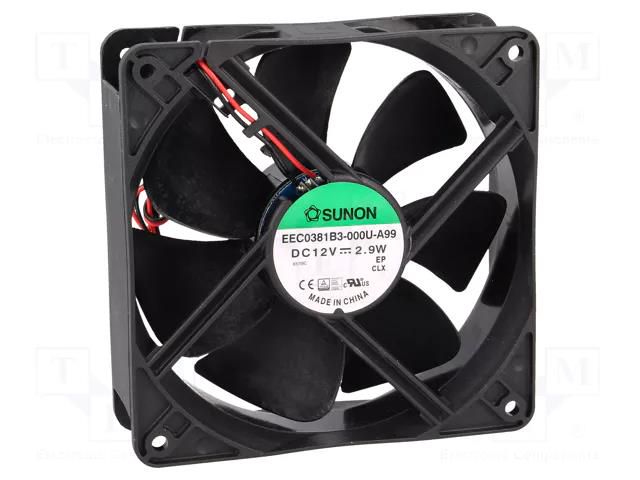

Fan: DC; axial; 12VDC; 120x120x38mm; 158m3/h; 37dBA; ball; Len: 310mm SUNON
Product Code: EEC0381B3-A99
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 12VDC; 120x120x38mm; 158m3/h; 37dBA; ball; Len: 310mm SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 12VDC; 120x120x38mm; 158m3/h; 37dBA; ball; Len: 310mm
Useful information
Supplier parameters
Product code
EEC0381B3-A99
Additional functions
Autorestart
Cable length
0.31m
Current and power consumption tolerance
±15%
Current rating
0.255A
Enclosure material
thermoplastic
Fan dimensions
120x120x38mm
Fan efficiency
158m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
axial
Leads
lead x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
37dBA
Operating temperature
-10...70°C
Operating voltage
6...13.8V DC
Power consumption
2.9W
Rotational rate/speed
2100 (±10%)rpm
Static pressure
4.57mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
28AWG
Brand
SUNON
Supplier's product code
EEC0381B3-A99
Product ID
U-176679
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
