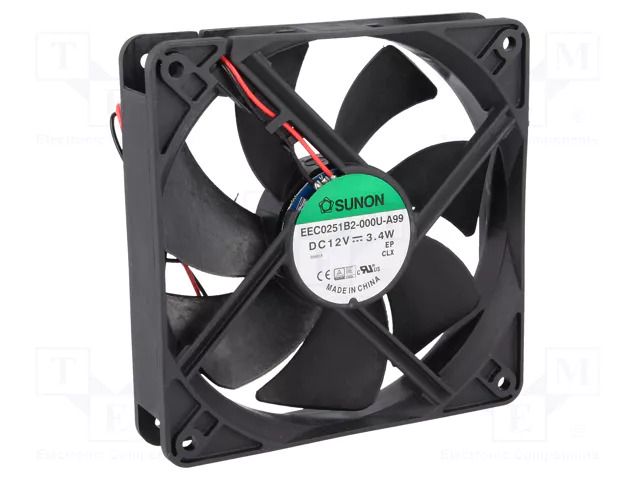

Fan: DC; axial; 12VDC; 120x120x25mm; 158m3/h; 40.5dBA; ball; 24AWG SUNON
Product Code: EEC0251B2-A99
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Supplier product description
Fan: DC; axial; 12VDC; 120x120x25mm; 158m3/h; 40.5dBA; ball; 24AWG
Useful information
Supplier parameters
Product code
EEC0251B2-A99
Supplier's product code
EEC0251B2-A99
Product ID
U-176666
Additional functions
Autorestart
Cable length
0.33m
Current and power consumption tolerance
±15%
Current rating
0.279A
Enclosure material
thermoplastic
Fan dimensions
120x120x25mm
Fan efficiency
158m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
axial
Leads
lead x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
40.5dBA
Operating temperature
-10...70°C
Operating voltage
6...13.8V
Power consumption
3.4W
Rotational rate/speed
2700 (±10%)rpm
Static pressure
5.59mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
24AWG
Brand
SUNON
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
