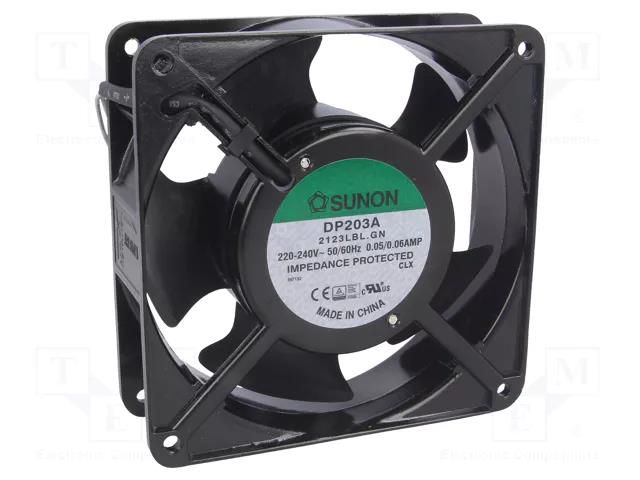

Fan: AC; axial; 230VAC; 120x120x38mm; 122m3/h(±10%); 37dBA; ball SUNON
Product Code: DP203A2123LBL
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Supplier product description
Fan: AC; axial; 230VAC; 120x120x38mm; 122m3/h(±10%); 37dBA; ball
Useful information
Supplier parameters
Product code
DP203A2123LBL
Brand
SUNON
Supplier's product code
DP203A2123LBL
Product ID
U-166833
Cable length
0.3m
Current and power consumption tolerance
±15%
Current rating
80mA
Enclosure material
aluminium
Fan dimensions
120x120x38mm
Fan efficiency
122m<sup>3</sup>/h (±10%)
Flammability rating
UL94V-0
Frequency
50Hz
Impeller material
thermoplastic
Kind of Bearing
ball
Kind of fan
axial
Leads
lead x2
Manufacturer
SUNON
Min. insulation resistance
500MΩ
Noise level
37dBA
Operating temperature
-10...70°C
Power consumption
10W
Rotational rate/speed
2150rpm
Static pressure
2.28mm H<sub>2</sub>O
Supply voltage
230V AC
Type of fan
AC
Wire size
24AWG
