Extralink 8 Port | Gigabit PoE Injector | 8x 1000Mb/s RJ45, Mode B, EXTRALINK
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Specifications
Supplier product description

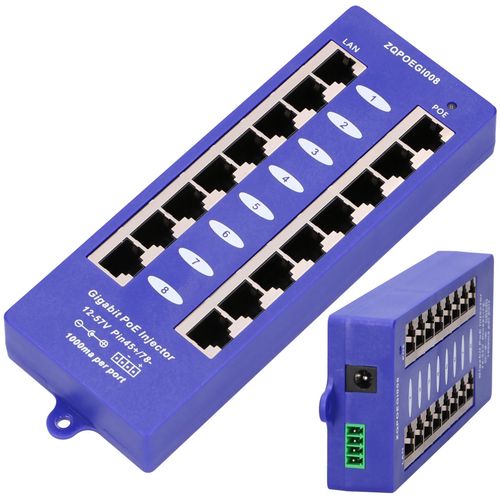

Extralink PoE injector 8 gigabit ports
Extralink 8-port PoE injector supports 10/100/1000 M Ethernet throughput. LAN RJ45 connectors are designed to connect the switch/PC/HUB. The POE RJ45 connectors provide data and PoE power at the same time, pins 1/2 & 3/6 & 4/5 & 7/8 are designed for data and pins 4/5 (+) & 7/8 (-) for power. The unit consists of 8 RJ45 sockets and one power outlet for up to 60 V DC. The power input has a diameter of 5.5 mm. The total output power must be less than the maximum input power of the AC-DC supply, otherwise a stronger AC-DC supply must be considered. The recommended power formula for the AC-DC adapter is 10 W per RJ45 kit (1 kit = 2 x RJ45 socket). For example, 8 x 10 W = 80 W for a PoE panel with 8 ports.
Features
Features
- Compatible with any Ethernet switch
- Flexible power supply - from 12 V to 57 V DC
- 10/100/1000 Mbps Gigabit Ethernet support
- Ideal for IP cameras, VoIP, Wi-Fi
- 8-port PoE injector - 8 LAN ports and 8 LAN + PoE ports
LED lights
LED lights
- POWER OFF - no LED
- 4/5 (V+), 7/8 (V-) - green LED
- 4/5 (V-), 7/8 (V+) - red LED
| Data transmission speed | Gigabit Ethernet |
| Number of LAN ports | 8x [10/100/1000M (RJ45)] |
| Cabling technology | 1000/10000 |
| DC-in jack | Yes |
| Easy to install | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 16 |
| Ethernet LAN data rates | 10,100,1000 |
| Package depth | 270 |
| Package height | 320 |
| Package type | Box |
| Package volume | 0.4 |
| Package weight | 1.3 |
| Package width | 200 |
| Plug and Play | Yes |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 48 |
| Rack mounting | No |
| RJ-45 input ports | 8 |
| RJ-45 output ports | 8 |
| Type of assembly | Wall |
| Type of assembly | Other |
| Wall mountable | Yes |
