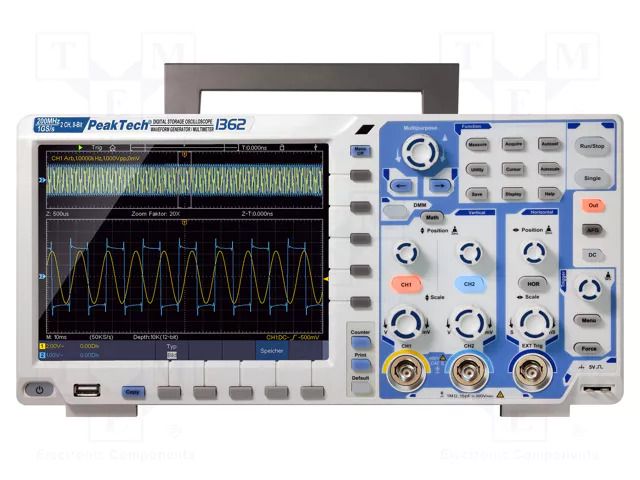

Oscilloscope: digital; Ch: 2; 200MHz; 2Gsps; 40Mpts; LCD TFT 8" PEAKTECH
Product Code: PKT-P1362
Brand
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Supplier product description
Oscilloscope: digital; Ch: 2; 200MHz; 2Gsps; 40Mpts; LCD TFT 8"
Supplier parameters
Product code
PKT-P1362
Brand
PEAKTECH
Supplier's product code
PKT-P1362
Product ID
U-1928918
Additional functions
arbitrary waveform generator
Band
200MHz
Body dimensions
340x180x90mm
Connectors for the country
Europe
Display resolution
800x600
Horizontal accuracy
±3%
Input coupling
AC, DC, GND
Input impedance
1MΩ/15pF
Input sensitivity
1mV/div...10V/div
Interface
USB
Kind of display used
LCD TFT 8"
Manufacturer
PEAKTECH
Max. input voltage
400V
Measuring instrument features
mathematical functions: addition, subtraction, division, multiplication and FFT
Memory record length
40Mpts
Number of channels
2
Operating temperature
0...40°C
Power consumption
24W
Related items
PKT-AKKU6
Rise time
≤1.75ns
Sampling
2Gsps
Software
included
Standard equipment
case
Supply voltage
100...240V AC
Time base
1n...1ks/div
Type of oscilloscope
digital
Touchpad
yes
Trigger
video signal
Trigger coupling
AC
Trigger modes
automatic
Trigger source
CH1
Vertical resolution
8bit
