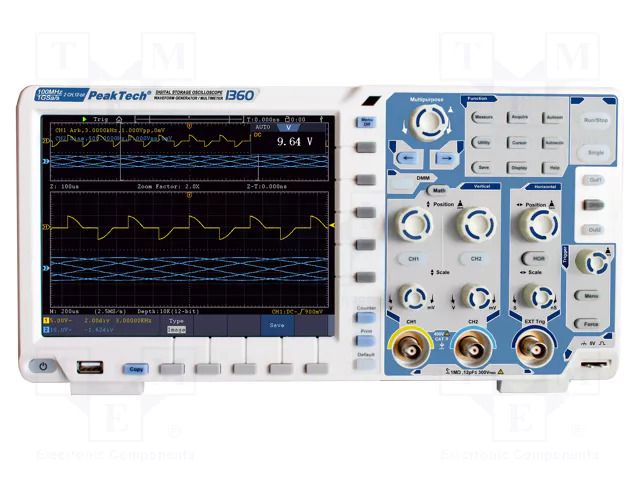

Oscilloscope: digital; Ch: 2; 100MHz; 1Gsps; 40Mpts; LCD TFT 8" PEAKTECH
Product Code: PKT-P1360
Brand
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Oscilloscope: digital; Ch: 2; 100MHz; 1Gsps; 40Mpts; LCD TFT 8" PEAKTECH
Specifications
Supplier product description
Oscilloscope: digital; Ch: 2; 100MHz; 1Gsps; 40Mpts; LCD TFT 8"
Supplier parameters
Product code
PKT-P1360
Brand
PEAKTECH
Supplier's product code
PKT-P1360
Product ID
U-1928917
Additional functions
multimeter
Band
100MHz
Body dimensions
340x180x90mm
Connectors for the country
Europe
Display resolution
800x600
Horizontal accuracy
±3%
Input coupling
AC, DC, GND
Input impedance
1MΩ/15pF
Input sensitivity
1mV/div...10V/div
Interface
WiFi
Kind of display used
LCD TFT 8"
Manufacturer
PEAKTECH
Max. input voltage
400V
Measuring instrument features
mathematical functions: addition, subtraction, division, multiplication and FFT
Memory record length
40Mpts
Number of channels
2
Operating temperature
0...40°C
Power consumption
24W
Related items
PKT-AKKU6
Rise time
≤3.5ns
Sampling
1Gsps
Software
included
Standard equipment
user's manual
Supply voltage
100...240V AC
Time base
2n...1ks/div
Type of oscilloscope
digital
Touchpad
yes
Trigger
rising-edge
Trigger coupling
highpass
Trigger modes
single
Trigger source
CH1
Vertical resolution
12bit
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
Product not available.
