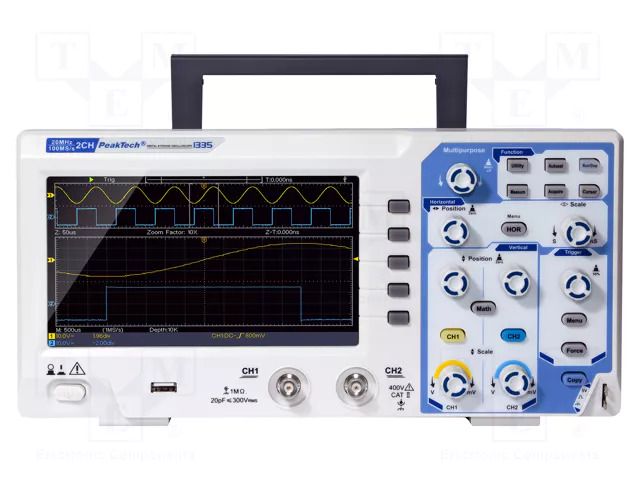

Oscilloscope: digital; Ch: 2; 20MHz; 100Msps; 10kpts; LCD TFT 7" PEAKTECH
Product Code: PKT-P1335
Brand
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Oscilloscope: digital; Ch: 2; 20MHz; 100Msps; 10kpts; LCD TFT 7" PEAKTECH
Specifications
Supplier product description
Oscilloscope: digital; Ch: 2; 20MHz; 100Msps; 10kpts; LCD TFT 7"
Supplier parameters
Product code
PKT-P1335
Brand
PEAKTECH
Supplier's product code
PKT-P1335
Product ID
U-1928909
Band
20MHz
Body dimensions
301x152x70mm
Connectors for the country
Europe
Display resolution
800x600
Horizontal accuracy
±3%
Input coupling
AC, DC, GND
Input impedance
1MΩ/20pF
Input sensitivity
5mV/div...5V/div
Interface
USB
Kind of display used
LCD TFT 7"
Manufacturer
PEAKTECH
Max. input voltage
400V
Measuring instrument features
mathematical functions: addition, subtraction, division, multiplication and FFT
Memory record length
10kpts
Number of channels
2
Operating temperature
0...40°C
Power consumption
15W
Rise time
≤17.5ns
Sampling
100Msps
Software
included
Standard equipment
user's manual
Supply voltage
100...240V AC
Time base
5n...1ks/div
Type of oscilloscope
digital
Trigger
falling-edge
Trigger coupling
DC
Trigger modes
automatic
Trigger source
CH1
Vertical resolution
8bit
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
