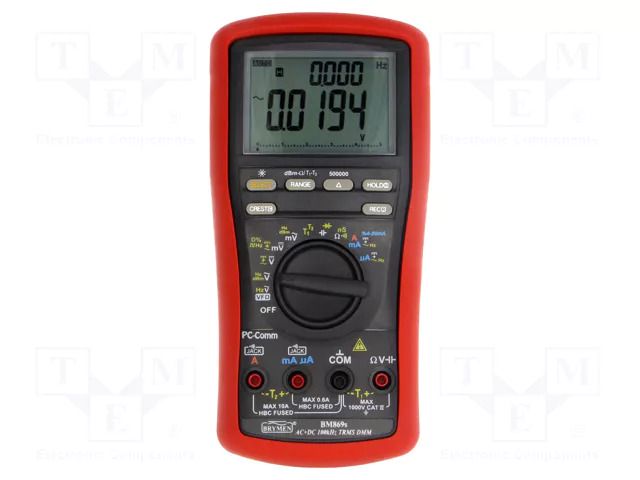

Digital multimeter; USB; LCD; Bargraph: 41segm.60x/s; 5x/s BRYMEN
Product Code: BM869
Brand
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Digital multimeter; USB; LCD; Bargraph: 41segm.60x/s; 5x/s BRYMEN
Useful information
Specifications
Supplier product description
Digital multimeter; USB; LCD; Bargraph: 41segm.60x/s; 5x/s
Useful information
Supplier parameters
Product code
BM869
AC current measuring accuracy
±(0.7% + 50 digit)
AC current measuring range
50mA
AC voltage measuring accuracy
±(0.4% + 30 digit)
AC voltage measuring range
500V
Bargraph
41 segm. 60x/s
Battery/ rechargeable battery
battery 6LR61 9V x1
Capacitance measuring accuracy
±(2.5%+ 3 digit)
Capacitance measuring range
500nF
Conform to the norm
EN 61010
Continuity test
acoustic indication
DC current measuring accuracy
±(0.1% + 20 digit)
DC current measuring range
500mA
DC voltage measuring accuracy
±(0.02% + 2 digit)
DC voltage measuring range
10µV...500mV
Dimensions (W x H x D)
103x208x64.5mm
Diode test
0.4mA @2V
Duty cycle factor
0.1...99.99%
Frequency measuring accuracy
±(0.02%+4 digit)
Frequency measuring range
10...200kHz
Illumination
yes
Interface
USB
Kind of display used
LCD
Kind of output connector
USB A plug
Manufacturer
BRYMEN
Measurement
capacitance
Measures 4-20mA current loop
0...100%
Measuring instrument features
CREST: logging of extreme values MAX, MIN and MAX-MIN of voltage and current impulses > 0,8ms
Optional equipment
KITBU-86X software
Pollution degree
2
Power supply
battery 6LR61 9V x1
Related items
TP873-5M
Resistance measuring accuracy
±(0.1%+2 digit)
Resistance measuring range
10mΩ...500Ω
Sampling
5x/s
Standard equipment
drop-like K-type probe with banana clips
Temperature measurement accuracy
±(0.3% + 1.5°C)
Temperature measuring range
-50...1000°C
Type of meter
digital multimeter
True effective value measurement
True RMS AC+DC
Weight with battery
635g
Brand
BRYMEN
Supplier's product code
BM869
Product ID
U-131763
