Supplier product description

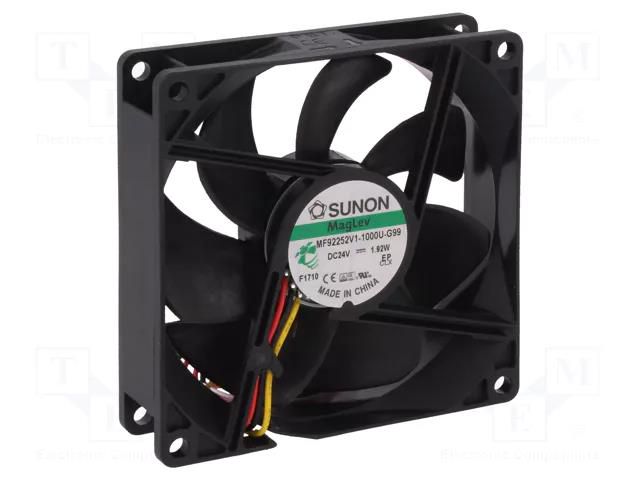

Fan: DC; axial; 24VDC; 92x92x25mm; 87.5m3/h; 34dBA; Vapo; Out: F type
Useful information
Supplier parameters
NomNr
MF92252V1-G99
Supplier's product code
MF92252V1-G99
Product ID
U-256243
Additional functions
Autorestart
Cable length
0.31m
Current and power consumption tolerance
±15%
Current rating
75mA
Enclosure material
thermoplastic
Fan dimensions
92x92x25mm
Fan efficiency
87.5m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
Vapo
Kind of fan
axial
Leads
lead x3
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
34dBA
Operating temperature
-10...70°C
Operating voltage
8...27.6V
Power consumption
1.8W
Rotational rate/speed
3000 (±10%)rpm
Signal output
F type
Static pressure
3.8mm H<sub>2</sub>O
Supply voltage
24V DC
Type of fan
DC
Wire size
24AWG
Brand
SUNON
