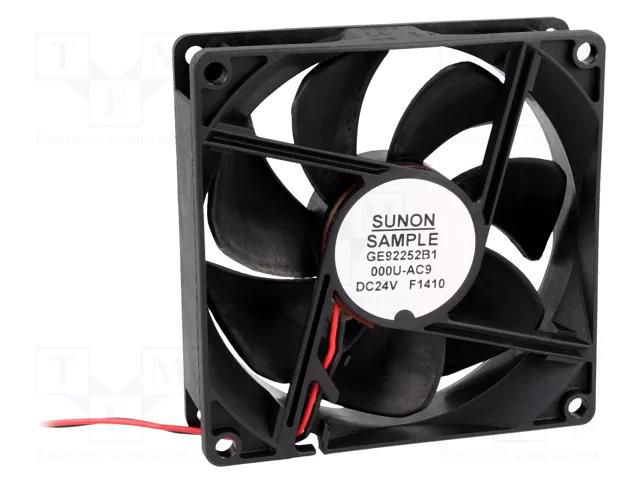

Fan: DC; axial; 24VDC; 92x92x25mm; 126.75m3/h; 47dBA; ball; IP56 SUNON
Product Code: GE92252B1-AC9
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Supplier product description
Fan: DC; axial; 24VDC; 92x92x25mm; 126.75m3/h; 47dBA; ball; IP56
Useful information
Supplier parameters
Product code
GE92252B1-AC9
Brand
SUNON
Supplier's product code
GE92252B1-AC9
Product ID
U-195558
Additional functions
Autorestart
Cable length
0.315m
Current and power consumption tolerance
±15%
Current rating
0.22A
Enclosure material
thermoplastic
Fan dimensions
92x92x25mm
Fan efficiency
126.75m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
IP rating
IP56
Kind of Bearing
ball
Kind of fan
axial
Leads
lead x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
47dBA
Operating temperature
-10...70°C
Operating voltage
10...27.6V
Power consumption
5.28W
Rotational rate/speed
4500 (±10%)rpm
Static pressure
8.89mm H<sub>2</sub>O
Supply voltage
24V DC
Type of fan
DC
Wire size
24AWG
