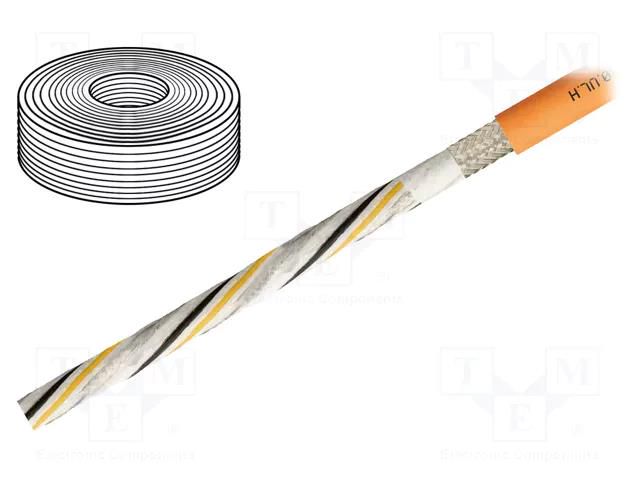

Wire: servo drive; chainflex® CF280.UL.H,hybrid; orange; Cu; PUR IGUS
Product Code: CF280ULH101.15.04D
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Wire: servo drive; chainflex® CF280.UL.H,hybrid; orange; Cu; PUR IGUS
Useful information
Specifications
SKU
U-145182
Product code
CF280ULH101.15.04D
Supplier product description
Wire: servo drive; chainflex® CF280.UL.H,hybrid; orange; Cu; PUR
Useful information
Supplier parameters
Product code
CF280ULH101.15.04D
Brand
IGUS
Supplier's product code
CF280ULH101.15.04D
Product ID
U-145182
Cable application
outdoor
Cable external diameter
13.5mm
Cable features
self-supporting
Cable structure
4G1.5mm<sup>2</sup>
Conform to the norm
UL 21223
Core diameter
22AWG
Core marking
colours + ground wire
Core section
1.5mm<sup>2</sup>
Core structure
stranded
CPR standard
no classification
Earth core
yellow-green
Information
The UL Label and Mark on full factory packaging only
Insulation colour
orange
Kind of core
Cu
Kind of material
halogen free
Kind of wire
chainflex® CF280.UL.H
Manufacturer
IGUS
Number of cores
8
Operating temperature
-25...80°C
Rated voltage
1kV
Resistance to
most of oils
Shield structure
tinned copper braid
Type of wire
servo drive
Wire insulation material
PUR
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
