Product description
![EMOS](https://www.lemona-electronics.eu/media/attribute/swatch/swatch_thumb/110x90/e/m/emos.jpg)
Weight
0.02557 kg.
Brand

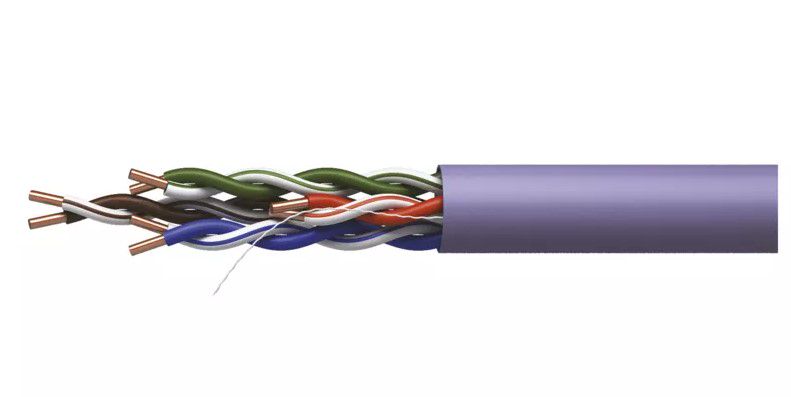

Unshielded Category 5E internet cable with LSOH (LSZH) (Low Smoke Smoke and Halogen Free) insulation. The conductor is made of unwrought copper. This cable complies with the specifications for installation in buildings (CPR)
Parameter
Reinforcement | Nylon 150D |
---|---|
Insulation | HDPE |
Category | 5E |
Conductor material | Copper(Cu) |
Shielding | None |
AWG | 24 |
Sheath colour | Purple (RAL 4005) |
Installation temperature | +5 °C to +60 °C |
Highest protocol supported | 1000 Base-T (Gigabit Ethernet) |
Insulation type | LSZH |
Behalogen insulation (LSZH) | Yes |
Outer diameter | 5.2 mm |
Conductor diameter | 0.50 mm |
Storage temperature | -20 °C to +60 °C |
Conductor insulation thickness | 0.22 mm |
External insulation thickness | 1.1 mm |
Reaction to fire | Dca-s2-d2-a1 |
Cable marking | UTP Cat5E LSZH 1 - 305m |
The description was translated using an automatic translator. If you notice any discrepancies, please notify us by email: [email protected].
Useful information
Specifications
SKU
340246
Weight
0.02557 kg.
Height, mm
220
Width, mm
220
Depth, mm
360
Barcodes
8592920000045
Shielding type
Without a screen (UTP)
Brand
Cable color
Purple
category
CAT 5e
Conductor
Cu
Conductor structure
monolithic
Product code
KO/UTP5/LSZH/E
Supplier product description
Product description
Unshielded horizontal cable of the highest quality, category CAT5E with LSOH (LSZH) jacket. The cores of conductors are made of non-recycled copper. The cable meets the requirements of the construction products regulation (CPR).
Useful information
Supplier parameters
AWG
24
cable sheath
LSZH
cable structure
wire
category
5E
conductor insulation thickness
0.22 mm
connector protection type
no
connectors
no
dangerous substances
none
designed for cable
not stated
highest supported protocol
1000 Base-T (Gigabit Ethernet)
inner conductor diameter
0.50 mm
jacket diameter
5.2 mm
jacket thickness
1.1 mm
length
305 m
low smoke zero halogen (LSZH) coat
yes
marking of cable
UTP Cat5E LSZH 1 – 305 m
material of the inner conductor
copper (Cu)
maximum operating humidity
93 %
mounting temperature
+5 °C to +60 °C
number of wires
8
packaging
305 m, paper box
product
UTP cable without connectors
reaction to the fire
Dca–s2–d2–a1
sheath color
purple (RAL 4005)
shielding
no
storage temperature
-20 °C to +60 °C
strength member
Nylon 150D
type
UTP CAT 5E LSZH
use
not stated
warranty period
20 years
wire insulation
HDPE
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
