Coaxial Cable CB113 100m, EMOS

Product Code: S5261
no gallery
no gallery
EMOS
Brand
More similar products

Price range

AmountPrice with tax (pcs)
1+
€0.90€0.90
wholesale

Min. qty: 100

Multiplier: 100

Total:

€90.00
2025-01-20 Estimated delivery

*Total delivery cost will be calculated in the checkout.

Warehouse in Europe

Warehouse in Europe

90% positive feedback

94%+ positive feedback

30 day money back guarantee

30 day money back guarantee

Product description

EMOS
Coaxial Cable CB113 100m, EMOS

Specifications

SKU
U-2337321
Barcodes
8595025304896
Brand
Product code
S5261

Supplier product description

Product description

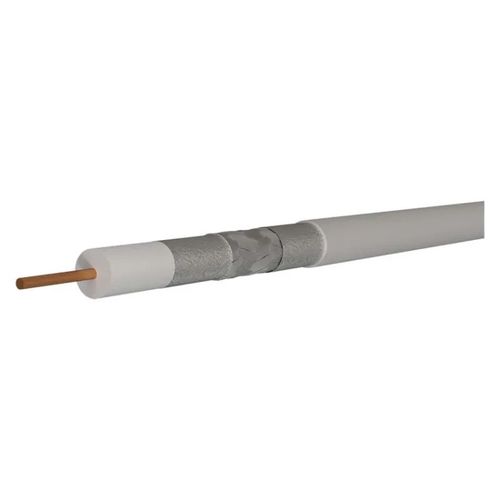

Highest quality coaxial cable with central conductor made of pure bare copper, with TRISHIELD triple shielding made of tin-plated CuSn copper, white colour. The cable is designed for demanding applications transmitting CCTV, TV or SAT signal.
Since the cable's shielding has excellent effectiveness (= very low radiation), the cable can be used to conduct very powerful signal, thus effectively increasing the distance across which is can transfer signal.
The high-quality shielding eliminates problems with convergence of multiple cables across great distances.
Thanks to the materials used for the central conductor and braiding, the cable is extremely resistant to weather conditions, humidity and corrosion. Ideal for demanding wiring in the house or flat.

Supplier parameters

Product code
S5261
APE = air dielectric
no
capacity (pF/m)
52
coaxial cable type
CB113
color cable sheath > Cable sheath color
white
colour of insulation of power conductors
not stated
construction of power conductors
not stated
cross-section of power conductors
not stated
dangerous substances
none
diameter of cable sheath
7,05 mm
diameter of the inner conductor
1.13 mm
dielectric type, diameter
FPE 4.8 mm
factor of shortening
0.85
FPE = Foam dielectric
yes
impedance
75 Ohm
insulation of power conductors
not stated
insulation resistance between the cores at 20 °C (MOhm/km)
1 000
intended use
terciary distribution CATV, SAT
material of the cable jacket
PVC
material of the inner conductor
copper (Cu)
material of the shielding
tinned cooper (CuSn)
max. attenuation at 20 °C (dB/100 m) 1 000 MHz
19.3
max. attenuation at 20 °C (dB/100 m) 10 MHz
2.2
max. attenuation at 20 °C (dB/100 m) 100 MHz
5.8
max. attenuation at 20 °C (dB/100 m) 2 000 MHz
29.5
max. attenuation at 20 °C (dB/100 m) 450 MHz
12.5
max. attenuation at 20 °C (dB/100 m) 650 MHz
15.3
max. attenuation at 20 °C (dB/100 m) 860 MHz
18.5
max. DC resistance at 20 °C (Ohm/km) - inner core
18.5
max. DC resistance at 20 °C (Ohm/km) - outer core
38.5
min. bend radius single/multiple
35/70 mm
min. return loss at 20 °C (dB) 10 to 300 MHz
30
min. return loss at 20 °C (dB) 600 to 900 MHz
23
min. return loss at 20°C (dB) 300 to 600 MHz
25
min. shielding attenuation (dB) 10 ~ 800 MHz
>95
mounting temperature
+5 °C to +60 °C
number of braiding wires
144× 0,12 mm
number of shieldings
3
packaging
100 m, reel
PE = polyethylene dielectric
not stated
PES = layer film
no
reaction to the fire
Eca
recommended types of connectors - F pressing
not stated
recommended types of connectors - F screwing
*K7351
shielding diameter
144× 0,12 mm2
shielding I. foil
1× Al/PES
shielding II. foil
Al/PES spiral
shielding protection
>84 %
storage temperature
-20 °C to +75 °C
suitable for outdoor use
no
type of packaging - labeled yardage > Type of packaging - labeled meters
1–100 m
type of packaging - length
100 m
type of packaging - type of coil
paper reel
UV resistant
no
warranty period
5 years
weight (kg/km)
41.5
Brand
EMOS
Supplier's product code
S5261
Product ID
U-2337321
