Meter: multifunction; VAC accuracy: ±(1.2%+5digit); 10÷1999Hz BRYMEN
Product Code: BM198PV
Brand
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description

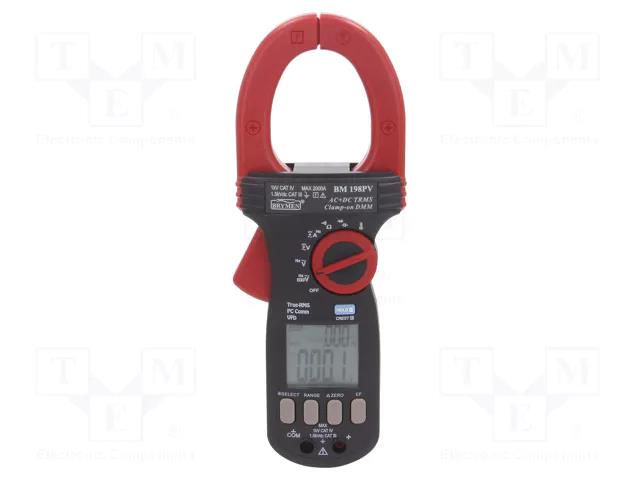

Meter: multifunction; VAC accuracy: ±(1.2%+5digit); 10÷1999Hz BRYMEN
Specifications
Supplier product description
Meter: multifunction; VAC accuracy: ±(1.2%+5digit); 10÷1999Hz
Supplier parameters
Product code
BM198PV
Product ID
U-2461324
AC current measuring accuracy
±(3% + 5 digit)@(500A...2kA)
AC current measuring range
2kA
AC voltage measuring accuracy
±(1.2% + 5 digit)
AC voltage measuring range
60V
Battery/ rechargeable battery
battery LR03 AAA 1,5V x2
Capacitance measuring range
60µF
Conform to the norm
EN 61010
Continuity test
<10Ω
DC current measuring accuracy
±(2% + 5 digit)
DC current measuring range
2kA
DC voltage measuring accuracy
±(0.5% + 5 digit)
DC voltage measuring range
1kV
Dimensions
264x43x97mm
Display parameters
(6000)
Frequency measuring accuracy
±(0.1%+4 digit)
Frequency measuring range
10...1999Hz
Interface
USB
Kind of display used
LCD
Kind of meter
digital
Manufacturer
BRYMEN
Max. diameter of measured cable
55mm
Measuring instrument features
simultaneously measures voltage and frequency
Measuring instruments application
for solar panels
Power supply
battery LR03 AAA 1,5V x2
Resistance measuring range
600kΩ
Sampling
5x/s
Standard equipment
test leads
Temperature measurement accuracy
±(0.3% + 4 digit)
Temperature measuring range
-50...1000°C
Type of meter
multifunction
True effective value measurement
True RMS
Weight with battery
608g
Brand
BRYMEN
Supplier's product code
BM198PV
