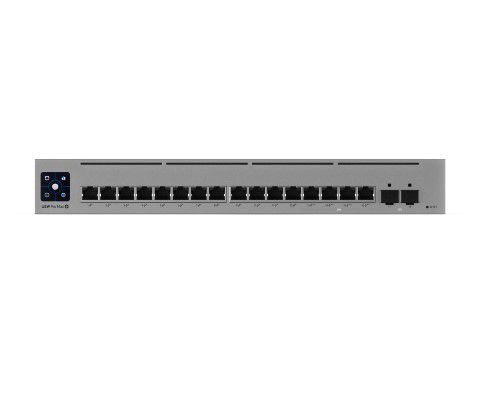

16-port switch Ubiquiti Unifi USW-Pro-Max-16-PoE-EU
Product Code: SWITCHUSWPROMAX16POE
Brand
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Supplier product description
- Type: Switch
- Brand: Ubiquiti
- Model: Unifi USW-Pro-Max-16-PoE-EU
- Number of ports: 16
- Gigabit PoE+ ports: 12
- SFP ports: 2 x 10G
- Transmission speed: 84 Gbps
- Forwarding speed: 62.496 Mpps
- Screen: 1.3" LCM
- Maximum power: 180W
- General
- Dimensions325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")
- Weight2.1 kg (4.6 lb)
- Enclosure materialSGCC steel
- Management interfaceEthernet In-Band
- Networking interface(12) GbE RJ45 ports, (4) 1/2.5 GbE RJ45 ports, (2) 10G SFP+ ports
- PoE interface(12) PoE/PoE+ (Pins 1, 2+; 3, 6-), (4) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
- Total non-blocking throughput42 Gbps
- Switching capacity84 Gbps
- Forwarding rate62.496 Mpps
- Power methodDC adapter
- Power supply54V, 210W
- Max. power consumption30W (Excluding PoE output)
- Total available PoE180W
- Max. PoE wattage per port by PSEPoE: 15.4W, PoE+: 30W, PoE++: 60W
- Voltage range PoE modePoE: 44—57V, PoE+/PoE++: 50—57V
- LCM display(1) 1.3" touchscreen
- ButtonFactory reset
- Ambient operating temperature-5 to 40° C (23 to 104° F)
- Ambient operating humidity10 to 90% noncondensing
- CertificationsCE, FCC, IC
- Switching FeaturesLayer 2 features IGMP snooping, STP / RSTP with priorities and port-level disable, Port isolation, Storm control, Voice VLAN, Port mirroring, LACP port aggregation, Multicast/broadcast rate limiting, MAC address blocking, Flow control, 802.1X control, Jumbo frames, Proprietary loop protection, DHCP snooping/guarding, Egress rate limit, LLDP-MED, Port restricted by MAC, Device isolation with ACLs
- Layer 3 featuresDHCP for locally-managed networks, DHCP relay, Inter-VLAN routing between networks on same switch, Static routing between local networks, Network isolation with ACLs
- Etherlightingâ„¢Ethernet Locating, Speed/link, Native VLAN/network, SFP+ Locating, Speed/link, Native VLAN/network
Supplier parameters
Product code
SWITCHUSWPROMAX16POE
Category
Swit
Brand
Ubiquiti
Supplier's product code
SWITCHUSWPROMAX16POE
Product ID
U-4199806
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
