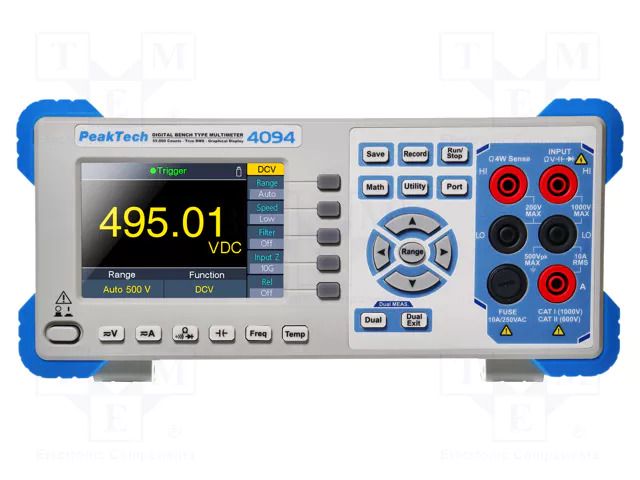

Benchtop multimeter; LCD TFT 4"; 4,5 digit (55000); 480x320 PEAKTECH
Product Code: PKT-P4094
Brand
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Supplier product description
Benchtop multimeter; LCD TFT 4"; 4,5 digit (55000); 480x320
Useful information
Supplier parameters
Product code
PKT-P4094
AC current measuring accuracy
±(1.5% + 10 digit)@(5A...10A)
AC current measuring range
500µA...500mA
AC voltage measuring accuracy
±(0.7% + 30 digit)
AC voltage measuring range
500mV...750V
Body dimensions
235x110x295mm
Capacitance measuring accuracy
±(2.5%+5 digit) @ 50nF...500µF
Capacitance measuring range
50nF...500µF
Conform to the norm
EN 61010
Continuity test
acoustic indication
DC current measuring accuracy
±(0.15% + 10 digit) @(5mA...500mA)
DC current measuring range
10A
DC voltage measuring accuracy
±(0.025% + 5 digit) @(500mV...5V)
DC voltage measuring range
1kV
Diode test
1mA @3V
Display parameters
4,5 digit (55000)
Display resolution
480x320
Frequency measuring accuracy
±(0.2%+8 digit)
Frequency measuring range
10kHz...60MHz
Interface
RS232
Kind of display used
LCD TFT 4"
Manufacturer
PEAKTECH
Measurement
AC voltage
Measuring instrument features
data logger function
Resistance measuring accuracy
±(0.1%+5 digit)@(5kΩ)
Resistance measuring range
500Ω
Software
included
Standard equipment
test probe x1
Supply voltage
110...240V AC
Temperature measurement accuracy
±0.5°C
Temperature measuring range
-270...1372°C
Type of meter
benchtop multimeter
True effective value measurement
True RMS
Brand
PEAKTECH
Supplier's product code
PKT-P4094
Product ID
U-2545422
