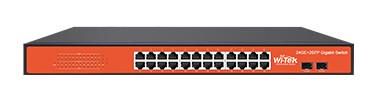

26 ports switch Wi-Tek WI-SG124F
Product Code: SWITCHWI-SG124F
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
26 ports switch Wi-Tek WI-SG124F
Specifications
SKU
U-3087813
Product code
SWITCHWI-SG124F
Supplier product description
- 24 x 100/1000Mbps RJ45 Ethernet ports
- 2 1000Mbps SFP slots
- Plug and play, zero configuration
- Supports desktop or wall mount replacement
- Smart DIP Switch: Port VLAN mode, video priority mode
- Energy efficient design compliant with IEEE802.3az
- Silent operation ideal for noise sensitive environment
- General
- StandardsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
- Interface24 100/1000Mbps RJ45 Ports 2 100/1000Mbps SFP Slots
- Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m) 1000BASE-X: MMF, SMF 1000Base-L X:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)
- DIP SwitchDefault / VLAN / CCTV
- Fan QuantityFanless
- Exchange Capacity52G
- Packet Forwarding Rate38.6Mpps
- Mac Address Table8K
- Power AdapterAC IN: 110-240V
- Packet Buffer Memory12Mb
- Jumbo Frame10240 Bytes
- Port VLANNo
- Package Dimension510×220×90 mm
- Switch Dimension440×140×45 mm
- Gross Weight2.17kg
- Net Weight1.58kg
- Package Contents1 × Gigabit Switch 1 × Power Cord 1 × Quick Installation Guide 1 x Rack-mount Kit 1 x Foot Pad
- Working Temperature-10℃～55℃
- Storage Temperature-40℃～70℃
- Working Humidity10%～90% RH non-condensing
- Storage Humidity5%～90% RH non-condensing
Supplier parameters
Category
Swit
Product code
SWITCHWI-SG124F
Supplier's product code
SWITCHWI-SG124F
Product ID
U-3087813
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
