Tester: wiring system; 0÷40°C; Test: wiring RJ11,wiring RJ45 UNI-T
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description

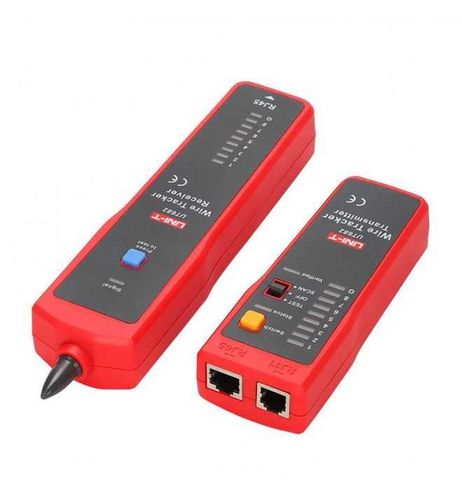

UT682 wire tracker consists of a transmitter and a receiver, it is able to track ethernet/telephone/power cables without opening their insulation. UT682 can troubleshoot ethernet cables and is a recommended tool for debugging communication cables and audio/video cables.
Features of UT682 Series Wire Tracker/Tone and Probe
Certifications: CE, UKCA
● Telephone/ethernet/power cable tracking
● DC level test, can check voltage level and polarity
● Ethernet cable wiring sequence verification
● Fast open/short circuit test
● Volume adjustment
● Headset connection for noisy environment
● Dual measurement cycle mode
● Low battery indication
Specifications of UT682 Series Wire Tracker/Tone and Probe
|
Specifications |
Range |
UT682 |
UT682D |
|
|
Wire tracking features |
Wire types |
LAN cable\telephone line\coaxial cable\electric wire |
Telephone line\twisted- |
|
|
Indication light for signal strength |
√ |
|||
|
Live switchboard wire tracing |
√ |
|||
|
Switchboard wire tracing distance |
≥100m |
|||
|
Telephone lines tracking distance |
≥3000m |
≥3000m |
||
|
Unshielded cables tracking distance |
≥320m |
|||
|
Shielded cables tracking distance |
≥320m |
|||
|
Open and short circuit test |
√ |
|||
|
Polarity indication for |
DCV function, range: |
√ |
√ |
|
|
Telephone lines and LAN cables distinction |
Jacks distinction |
√ |
√ |
|
|
Broken wire tracking |
√ |
|||
|
Transmitter output voltage |
≥12V peak-peak |
8V DC with a new battery |
||
|
Transmitter low battery indication |
6.6V±0.5V |
|||
|
Transmitter power supply |
9V battery |
√ |
√ |
|
|
Max transmitter working current |
25mA |
|||
|
Headphone jack for receiver |
√ |
|||
|
Receiver power supply |
9V battery |
√ |
√ |
|
|
Max receiver standby current |
~10mA |
√ |
√ |
|
|
Max receiver operating current |
<40mA (AC, RMS) |
√ |
√ |
|
|
Wire alignment |
Line sequence measurement |
9 LEDs (LED1~LED8, LED_G) |
√ |
|
|
Line sequence measuring speed |
Fast and slow selectable |
√ |
||
|
LAN cable: shielded/unshielded indication |
√ |
|||
|
Transmitter input |
52V DC |
60V DC |
||
|
Operating environment |
Operating temperature: 0~40℃; Storage temperature: -10~50℃ |
|||
|
General Characterisitics |
||||
|
Product color |
Red and grey |
|||
|
Product net weight |
UT682: Transmitter-125g, receiver-153g; UT682D: Transmitter-150g, Receiver-130g |
|||
|
Product size |
UT682: Transmitter-125mm x 48mm x 28mm, receiver-195mm x 48mm x 30mm |
|||
|
Standard accessories |
9V battery x 2, RJ11 cable (UT682), RJ45 cable (UT682), RJ11 cable with alligator clips (UT682) |
|||
|
Standard individual packing |
Blister (UT682), carrying bag (UT682), gift box (UT682D), English manual |
|||
|
Standard quantity per carton |
UT682: 24pcs; UT682D: 20pcs |
|||
|
Standard carton measurement |
UT682: 575mm x 310mm x 430mm; UT682: 425mm x 265mm x 260mm |
|||
|
Standard carton gross weight |
UT682: 12.3kg; UT682D: 7.5kg |
|||
Specifications
Experimental product description generated by artificial intelligence
UNI-T Wiring System Tester: RJ11 & RJ45 Network Cable Tester
This UNI-T wiring system tester is a reliable and efficient tool for verifying the integrity of your RJ11 and RJ45 network cabling. Categorized under LAN and Telephone Networks Testers, this device is essential for professionals and DIY enthusiasts alike.
Key Features and Benefits
- Accurate Testing: Quickly and accurately tests RJ11 and RJ45 wiring systems.
- Wide Operating Temperature: Functions reliably within a temperature range of 0°C to 40°C.
- Easy to Use: Simple operation for efficient troubleshooting.
- Time-Saving: Identifies cabling faults quickly, minimizing downtime.
- Reliable Brand: Backed by the trusted UNI-T brand, known for quality and durability.
Applications
This versatile tester is ideal for:
- Network installations and maintenance
- Troubleshooting network connectivity issues
- Verifying proper wiring of telephone lines and data cables
- Home and office networking projects
Why Choose this UNI-T Cable Tester?
Choosing the UNI-T wiring system tester means choosing accuracy, efficiency, and reliability. Its straightforward design and robust construction make it a valuable asset for anyone working with RJ11 and RJ45 cabling. Save time and avoid costly errors with this essential testing tool.
Specifications
Operating Temperature: 0°C to 40°C
Testing Capabilities: RJ11 and RJ45 wiring
