Product description

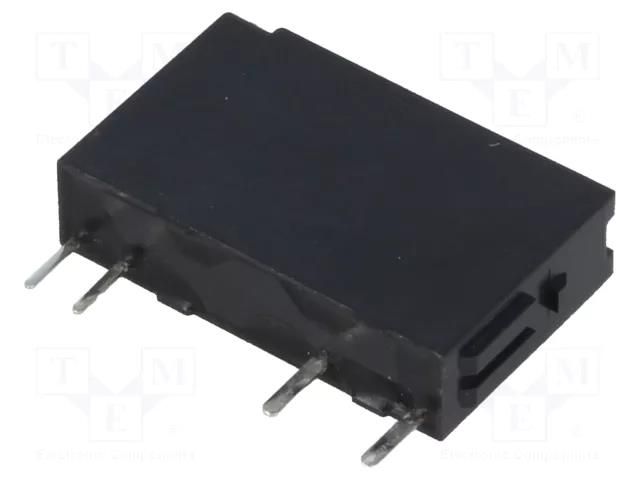

Relay: electromagnetic; SPST-NO; Ucoil: 18VDC; Icontacts max: 5A PANASONIC
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 18VDC; Icontacts max: 5A
Useful information
Supplier parameters
Product code
APAN3118
AC contacts rating @R
5A / 250V AC
Body dimensions
20x5x12.8mm
Coil current
6.1mA
Coil power consumption
110mW
Coil resistance
2945Ω
Coil voltage min.
12.6V DC
Contact current max.
5A
Contact material
AgNi + Au
Contact resistance
30mΩ
Contacts configuration
SPST-NO
DC contacts rating @R
5A / 30V DC
Manufacturer
PANASONIC
Manufacturer series
PA-N
Mechanical durability
20000000 cycles
Mounting
PCB
Operate time
10ms
Operating temperature
-40...90°C
Rated coil voltage
18V DC
Relay variant
miniature
Release time
5ms
Switched voltage
max. 110V DC
Terminal pitch
5.08mm
Type of relay
electromagnetic
Brand
PANASONIC
Supplier's product code
APAN3118
Product ID
U-114694
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
