Product description

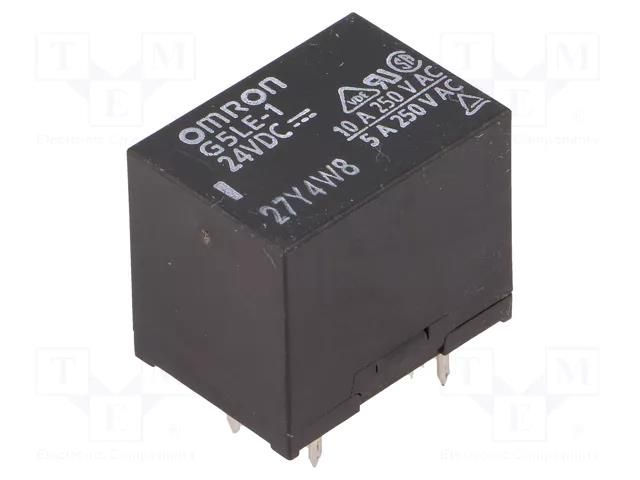

Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 10A OMRON Electronic Components
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 10A
Useful information
Supplier parameters
Product code
G5LE-1-24
AC contacts rating @R
10A / 240V AC
Body dimensions
22.5x16.5x19mm
Coil current
16.7mA
Coil power consumption
400mW
Coil resistance
1.44kΩ
Contact current max.
10A
Contact resistance
100mΩ
Contacts configuration
SPDT
DC contacts rating @R
8A / 30V DC
Enclosure description
standard seal
Manufacturer
OMRON Electronic Components
Manufacturer series
G5LE
Mounting
PCB
Operate time
10ms
Operating temperature
-40...85°C
Rated coil voltage
24V DC
Relay variant
miniature
Release time
5ms
Switched voltage
max. 125V DC
Terminal pitch
2mm
Type of relay
electromagnetic
Brand
Omron
Supplier's product code
G5LE-1-24
Product ID
U-194071
