PoE Injector RJ45 Gigabit 15.4W 48VDC 802.3af
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
The PoE Injector TL-POE150S fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
FEATURES
- IEEE 802.3af compliant
- Auto-determine the necessary power requirements
- Gigabit speed support
- Plug-and-Play, requires no configuration
SPECIFICATIONS
| HARDWARE FEATURES | |
|---|---|

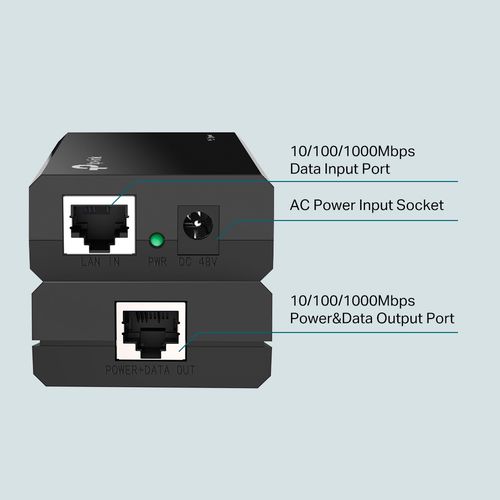

| Interface | 2 10/100/1000Mbps RJ45 Port AUTO Negotiation/AUTO MDI/MDIX 1 48VDC POWER INPUT PORT |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
| Power Supply | 15.4W (Max. 48VDC) |
| LED Indicator | PWR |
| Dimensions (W x D x H) | 81 × 54 × 24 mm |
| SOFTWARE FEATURES | |
|---|---|

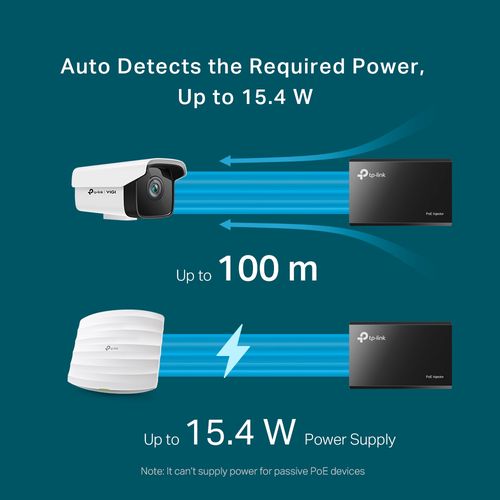

| Basic Function | Compatible With IEEE 802.3af Compliant PDs Delivers Power Up To 100 Meters Auto-Determine The Necessary Power Requirements |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |
| Package Contents | Gigabit PoE Injector TL-POE150S Power Adapter RJ45 Cable Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Useful information
Specifications
Experimental product description generated by artificial intelligence
TP-LINK PoE Injector RJ45 Gigabit 15.4W 48VDC 802.3af
This TP-LINK PoE Injector is a reliable and efficient solution for powering network devices over Ethernet cables. It belongs to the PoE Network Components category and provides a simple way to extend the reach of your network while supplying power to devices that require it.
Key Features and Benefits
- Power over Ethernet (PoE): Delivers both power and data over a single Ethernet cable, simplifying installation and reducing cabling costs.
- Gigabit Ethernet: Supports high-speed data transmission for optimal network performance.
- 802.3af Compliant: Complies with the IEEE 802.3af standard for PoE, ensuring compatibility with a wide range of PoE-enabled devices.
- 15.4W Power Output: Provides sufficient power for many PoE devices, such as IP cameras, access points, and IP phones.
- 48VDC Input: Accepts standard 48V DC power input.
- Easy Installation: Simple plug-and-play installation for quick setup.
Uses
This PoE injector is ideal for various applications where powering network devices remotely is necessary. Some common uses include:
- Powering IP security cameras in locations without readily available power outlets.
- Deploying wireless access points in areas where power outlets are inconvenient or unavailable.
- Extending the reach of your network to areas without existing power infrastructure.
Why Choose This TP-LINK PoE Injector?
TP-LINK is a trusted brand known for its quality and reliability. This PoE injector offers a cost-effective and convenient solution for powering your network devices, ensuring a stable and efficient network connection. Its compatibility with the 802.3af standard makes it suitable for a wide range of devices.
| Specification | Value |
|---|---|
| Brand | TP-LINK |
| Power Output | 15.4W |
| Input Voltage | 48VDC |
| Standard | 802.3af |
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
