Oscilloscope 70MHz, 1.25GSa/s, 4 channels
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
The DHO800 series is RIGOL's high-performance economical digital oscilloscope. Though compact in design, it has superior performance. It features a capture rate up to 1,000,000 wfms/s (in UltraAcquire Mode), 25 Mpts memory depth, 12 bits resolution, and low noise. The DHO800 series is a brand new economical digital oscilloscope designed for the vast mainstream digital oscilloscope market to meet their design, debugging, and test demands.
Product Features
• Ultra-low noise floor, purer signal, never miss the small signals
• Up to 12 bits resolution for all the models of this series
• Max. analog bandwidth of 70 MHz, 4 analog channels
• Max. real-time sample rate of 1.25 GSa/s
• Max. memory depth of 25 Mpts
• Vertical sensitivity range: 500 μV/div to 10 V/div
• Max. capture rate of 1,000,000 wfms/s (in UltraAcquire mode)
• Digital phosphor display with real-time 256-level intensity grading
• Waveform search and navigation function allows you to debug the signal anomalies faster
• 7" (1024x600) capacitive multi-touch screen
• Brand new Flex Knob brings user-friendly experience
• USB Device & Host, LAN, and HDMI interfaces (std.) for all the models of this series
• Novel and delicate industrial design, easy to operate
• Unique online upgrade
Technical data
| Analog Bandwidth (-3 dB) | 70 MHz |
| Rise Time (10% to 90%, typical) | ≤5 ns ≤3.5 ns |
| No. of Analog Channels | 4 |
| Sampling Mode | Real-time Sampling |
| Max. Sample Rate of Analog Channel | 1.25 GSa/s (single-channel), 625 MSa/s (full-channel) |
| Max. Memory Depth | 25 Mpts (single-channel), 10 Mpts (full-channel) |
| Max. Waveform Capture Rate | 30,000 wfms/s (Vector Mode) 1,000,000 wfms/s (UltraAcquire Mode) |
| Vertical Resolution | 12 bits |
| Hardware Real-time Waveform Recording and Playing | Max. 500,000 frames |
| Peak Detection | Capture 1.6 ns glitches |
| LCD Size and Type | 7'' capacitive multi-touch screen |
| Display Resolution | 1024x600 |
| Input Coupling | DC, AC, or GND |
| Input Impedance | 1 MΩ ± 1% |
| Input Capacitance | 15 pF ± 3 pF |
| Maximum Input Voltage | CAT I 300 Vrms, 400 Vpk (DC + Vpeak) |
| Range of Time Base | 5 ns/div to 500 s/div |
| Trigger Type | Edge trigger, Pulse trigger, Slope trigger, Video trigger, Pattern trigger, Duration trigger, Timeout trigger, Runt trigger, Window trigger, Delay trigger, Setup/Hold trigger, Nth Edge trigger, RS232/UART, I2C, SPI, CAN |
| Search & Navigation Type | Edge, Pulse |
| Waveform Measurement function | Yes |
| Waveform Calculation function | Yes |
| Waveform Recording & Analysis | Yes |
| Serial Decoding function | Yes |
| AutoScale | Min voltage > 10 mVpp, duty cycle > 1%, frequency > 35 Hz |
| Digital Voltmeter Function | Yes; DC, AC+DCrms, ACrms |
| High-precision Frequency Counter | Yes |
| Processor | Cortex-A72 up to 1.8 GHz, 6-core processor |
| System Memory | 4 GB RAM |
| Operating System | Android |
| Internal Non-volatile Memory | 8 GB |

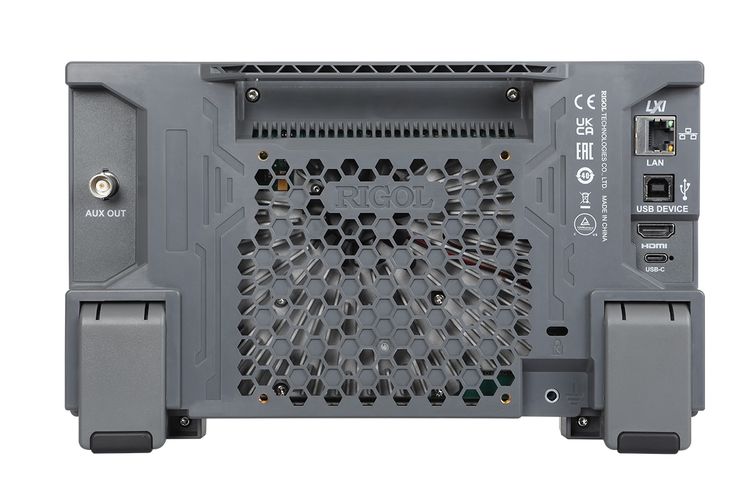

| USB2.0 Host | 1 on the front panel |
| USB2.0 Device | 1 on the rear panel |
| LAN | 1 on the rear panel, 10/100 Base-T, supporting LXI-C |
| Web Remote Control | Supports Web Control interface (input the IP address of the oscilloscope into the Web browser to display the operation interface of the oscilloscope) |
| EXT Interface | - |
| AUX Output Interface | 1 on the rear panel, BNC connector; Vo (H) ≥ 2.5 V open circuit, ≥1.0 V 50 Ω to GND; Vo (L) ≤ 0.7 V to load ≤4 mA, ≤0.25 V 50 Ω to GND |
| Trigger Output | Outputs a pulse signal when the oscilloscope is triggered |
| Pass/Fail Output | Output a pulse signal when a pass/fail event occurs. Supports user-defined pulse polarity and pulse time (100ns to 10 ms) |
| HDMI Video Output | 1 on the rear panel, HDMI 1.4, A plug. It is used to connect to an external monitor or projector |
| Probe Compensation Output | 1 kHz, 3 Vpp square waveform |
| Power Supply Interface | USB Type-C |
| Power Voltage | DC 12 V, 4 A |
| Power | Max. 48 W (when connected to various interfaces, USB storage device, active probes) |
| Recommended Calibration Interval | 18 months |
| Operating Temperature Range | 0℃ to 50℃ |
| Dimensions | 265.35 mm x 161.75 mm x 77.38 mm |
| Weight without package | 1.78 kg |
Useful information
Specifications
Experimental product description generated by artificial intelligence
RIGOL DHO800 Series Digital Oscilloscope
The RIGOL DHO800 Series offers a range of high-performance, economical digital oscilloscopes. This particular model boasts a 70MHz bandwidth, a 1.25GSa/s real-time sample rate, and 4 analog channels, making it ideal for a variety of applications.
Key Features
- High Bandwidth: 70MHz bandwidth for capturing high-speed signals.
- High Sample Rate: 1.25GSa/s real-time sample rate for accurate signal representation.
- Multiple Channels: 4 analog channels for simultaneous signal acquisition.
- High Resolution: 12-bit vertical resolution for precise measurements.
- User-Friendly Interface: Intuitive interface for ease of use.
- Compact and Portable Design: Easy to transport and use in various settings.
Applications
This versatile oscilloscope is suitable for a wide range of applications, including:
- Embedded system design and debugging
- Electronics maintenance and troubleshooting
- Basic research and development
Why Choose This Product?
The RIGOL DHO800 Series provides a powerful combination of performance and affordability. Its compact size, multiple features, and user-friendly interface make it an excellent choice for professionals and students alike. The high sample rate and resolution ensure accurate measurements, while the multiple channels allow for simultaneous observation of multiple signals.
| Specification | Value |
|---|---|
| Bandwidth | 70 MHz |
| Sample Rate | 1.25 GSa/s |
| Channels | 4 |
For detailed specifications, please refer to the product datasheet.
