Product description
Weight
0.007 kg.
Brand

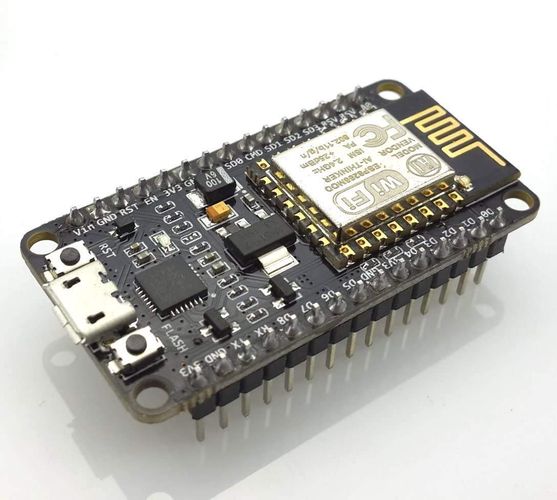

Wi-fi module, based on ESP-12E ESP8266. On Board, 10 GPIO ports (each of which can handle PWM, I2C and 1-wire), built-in 10-bit ADC and a Converter USB-UART. It has installed software NodeMCU which enables programming with the Lua script language or using the Arduino IDE. It has 4 MB of Flash memory.
Specification
- The module is based on ESP-12E ESP8266
- 10 GPIO - every one of them can work as PWM, I2C or 1-Wire
- Flash memory: 4 MB
- Built-in microUSB connector
- Converter USB to UART CP2102
- Built-in PCB antenna
- Lead's pitch: 2.54 mm
- The distance between the connectors: 23 mm
- Module dimensions: 49 x 25 mm
