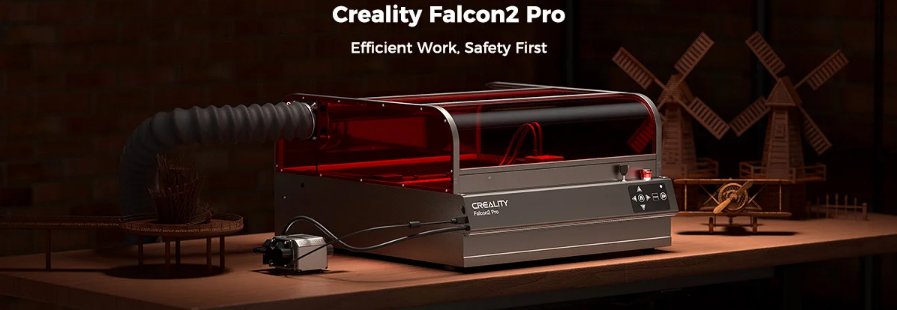

The Creality Laser Falcon 2 Pro Engraver is a powerful and versatile tool that combines cutting-edge laser technology with precision engraving capabilities, making it an ideal choice for makers, hobbyists, and professionals alike. With a 22W laser module, this machine offers high-speed engraving and cutting performance, allowing you to create detailed designs on a wide range of materials with ease.

Highlights

• High-power 22W laser module for faster and more precise engraving
• Larger engraving area of 400 x 430 mm for bigger projects
• FDA Class 1 Safety Certification
• Integrated Air Assist



Functional 360° visual design and creative scope

A completely transparent cover with a curved surface lets you observe the processing of your workpieces from every angle.

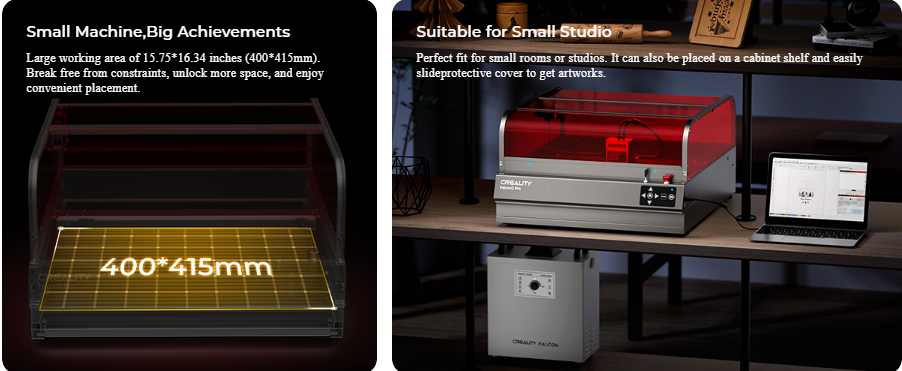

A spacious build space of 400 x 415 mm enables extensive processing for enormous creative freedom.

Excellent performance: 22W & 40W in comparison

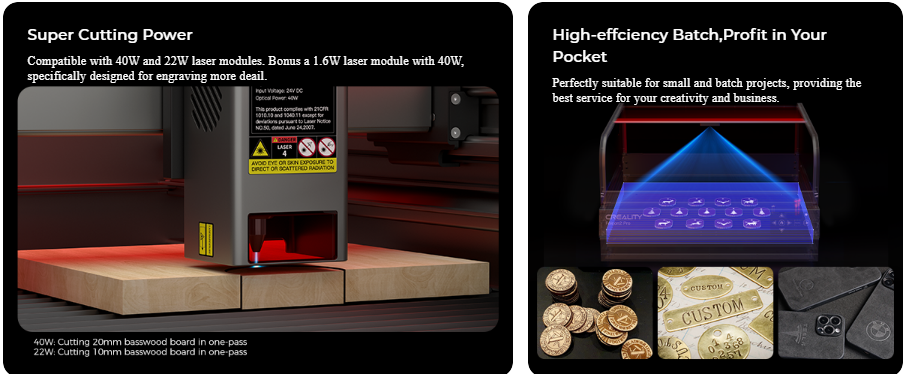

The Falcon2 Pro is compatible with 40W and 22W laser modules:

► The efficient 40W module is suitable for those users who have higher cutting requirements; ideal for processing 18 mm thick cherry wood, 15 mm thick dark, opaque acrylic and 0.1 mm thick stainless steel (in one pass),

► The 22W module is suitable for engraving work where efficiency or cutting ability is less important; ideal for processing 10 mm thick cherry wood, 8 mm thick dark opaque acrylic and 0.04 mm thick stainless steel (in one pass)

The 22W module has a smaller laser spot of 0.08 x 0.1 mm, which allows it to achieve finer engraving results than the 40W module with its laser spot of 0.08 x 0.12 mm.

Tip: When you purchase the 40W laser module, you will also receive a 1.6W laser module for finer and more detailed engravings.

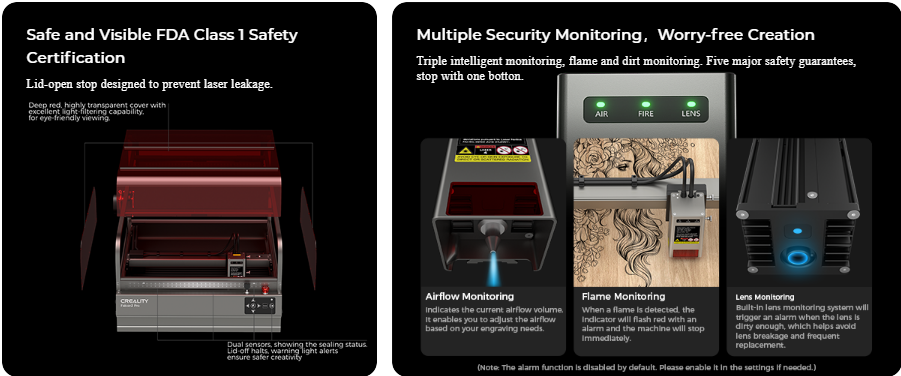

Safety first!

The dark red, transparent cover protects your eyes by filtering the laser light excellently. This means you can carry out your projects without protective glasses.

Thanks to a specially built-in safety lock, all work is stopped as soon as the lid is opened to prevent the laser from leaking. Two sensors display the sealing status and give a light signal in case of danger.

Versatile monitoring for more security control:

► Airflow Monitoring: Displays the current airflow amount, allowing the airflow to be adjusted to specific engraving requirements.

► Flame Monitoring: If a flame is detected, the display flashes red and triggers an alarm, causing the device to shut down immediately.

► Lens Monitoring: If the lens becomes very dirty, an alarm is triggered, which can prevent lens breakage and frequent replacement.

Visual support for precise positioning

Falcon2 Pro has a built-in camera that helps with more precise lens alignment and ensures full-screen functionality.

Integrated Air Assist System & Air Purification System as optional upgrade

To optimally support each of your projects, Falcon2 Pro is equipped with an integrated Air Assist. Its air blast on the laser head blows away dirt during engraving and cutting and ensures optimal engraving or cutting results through automatic and manual adjustment.

An optional air purification system upgrade, the Air Purification System, has a powerful smoke extractor that effectively filters smoke and dust. Even better results are achieved when combined with other air purifiers.

Additional features:

• Suitable for small and large series projects,
• Real-time preview,
• Image output with one click,
• Several modes for controlling the integrated fan and light bar (are switched on with the machine in auto mode, after engraving is finished they are automatically switched off),
• Efficient heat and smoke extraction,
• Special fence-like protective strips with wear-resistant surface,
• Metal drawer design for more order,

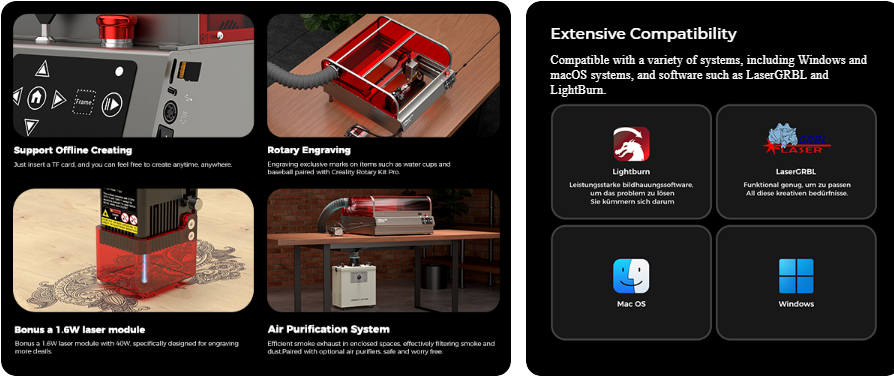

• Supports offline creation,
• Broad compatibility with operating systems and software (e.g. Laserburn, LaserGRBL).
