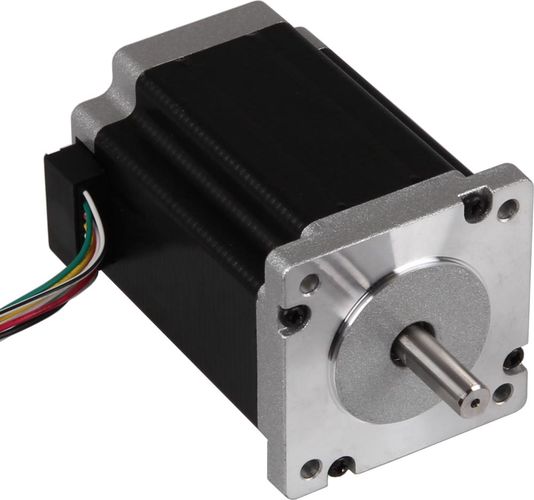

Joy-iT NEMA 23-01 Stepper motor

The NEMA23-01 stepper motor can be optimally used for tasks in the areas of automation, CNC (f.e. engraving lasers, 3D printers, milling machines, etc.) or robotic.
With the double shaft, this motor can be used f. e. in connection with an encoder.

Technical data:

Specification: 60STH86-3008B

Shaft diameter: Primary 8, Secondary 6.35 mm

Connection: 4 jumper cables

Steps per revolution: 200

Holding torque

3 Nm

Rated voltage: 2.73 V

Rated current: 4.2 A

Step angle: 1.8°

Amount of Phases: 4

Wiring: Coil 1A: red, Coil 1B: yellow, Coil 2A: blue, Coil 2B: black, Coil 3A: white, Coil 3B: orange, Coil 4A: brown, Coil 4B: green
