CD4017B, CD4022B Types: CMOS Decade and Octal Counters

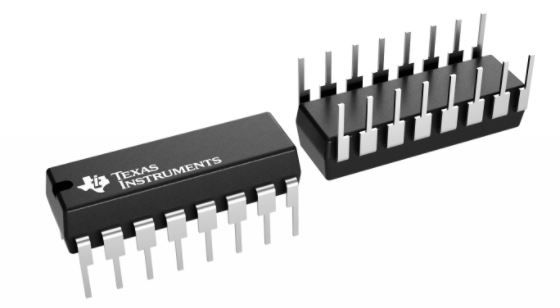

The TEXAS INSTRUMENTS CD4017 DIP16 RoHS integrated circuit is a versatile and reliable CMOS counter/divider. This digital logic IC is ideal for various applications requiring precise counting and frequency division.
Key Features
- Fully static operation
- Medium-speed operation
- Standardized, symmetrical output characteristics
- 100% tested for quiescent current at 20V
- 5-V, 10-V, and 15-V parametric ratings
- Meets JEDEC Tentative Standard No. 13A requirements
Functions and Uses
The CD4017B is a decade counter with 10 decoded outputs, while the CD4022B is an octal counter with 8 decoded outputs. These counters are advanced by a positive clock signal transition when the CLOCK INHIBIT signal is low. A high RESET signal clears the counter to zero. The Johnson counter configuration allows for high-speed operation and spike-free decoded outputs. A CARRY-OUT signal is provided for cascading multiple devices.
Applications include:
- Decade counter/decimal decode display (CD4017B)
- Binary counter/decoder
- Frequency division
- Counter control/timers
- Divide-by-N counting
Why Choose This Product?
The TEXAS INSTRUMENTS CD4017 DIP16 RoHS offers superior performance, reliability, and ease of use. Its CMOS technology ensures low power consumption and high noise immunity. The device's standardized outputs and wide operating voltage range make it compatible with a variety of systems. The RoHS compliance ensures environmental friendliness.
| Parameter | Value |
|---|---|
| Package Type | DIP16 |
| RoHS Compliant | Yes |
