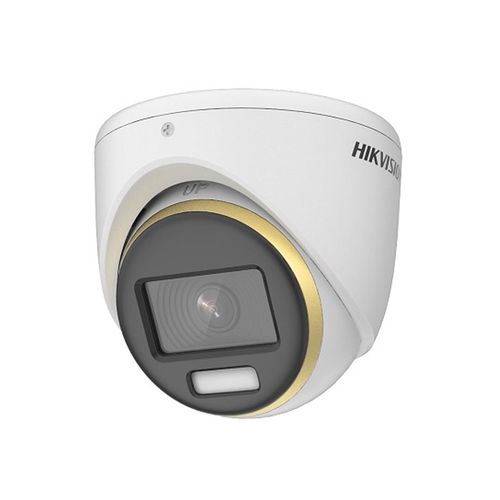

Hikvision dome DS-2CE70DF3T-MFS F2.8
Product Code: KDNDS2CE70DF3TMFS
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Hikvision dome DS-2CE70DF3T-MFS F2.8
Specifications
Supplier product description
- 2 MP Turret/Dome Camera
- 1920 × 1080 resolution
- 2.8 mm, 3.6 mm Fixed Focal Lens
- 3D DNR
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- IP67
| Title | Description |
| Image Sensor | 2 MP CMOS |
| Signal System | PAL/NTSC |
| Resolution | 1920 (H) × 1080 (V) |
| Frame Rate | TVI: 1080p @ 25 fps/30 fps, CVI: 1080p @ 25 fps/30 fps, AHD: 1080p @ 25 fps/30 fps, CVBS: PAL/NTSC |
| Min. Illumination | 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Slow Shutter | Max. 16 times |
| Lens | 2.8 mm, 3.6 mm fixed focal lens |
| Field of View(FOV) | 2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116°: 3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91° |
| Lens Mount | M12 |
| Light Alarm | Solid Light Alarm (White Light) |
| Day & Night | 24/7 Color Imaging |
| WDR | ≥130 dB |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| White Light | Auto/Off |
| Image Mode | STD/HIGH-SAT/HIGHLIGHT |
| AGC | Yes |
| Day/Night Mode | Color |
| White Balance | Auto/Manual |
| AE (Auto Exposure) Mode | WDR;BLC;HLC;Global;HLS |
| Privacy mask | 4 programmable privacy masks |
| Motion Detection | 4 programmable motion areas |
| Noise Reduction | 3D DNR/2D DNR |
| Language | English |
| Function | Defective Pixel Correction;Sharpness;Mirror;Contrast;Brightness;Anti-Banding;Smart Light |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| Audio in | Built-in mic |
| Operating Conditions | -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, *You are recommended to use one power adapter to supply the power for one camera. |
| Consumption | 3.0 W |
| Protection Level | IP67 |
| Material | Metal |
| White Light Range | Up to 20 m |
| Communication | HIKVISION-C |
| Dimension | Φ 85.1 mm × 77.62 mm (Φ 3.35" × 3.05") |
| Weight | 312 g (0.69 lb.) |
Supplier parameters
Category
Dom
Brand
Hikvision
Supplier's product code
KDNDS2CE70DF3TMFS
Product ID
U-2528260
Product code
KDNDS2CE70DF3TMFS
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
