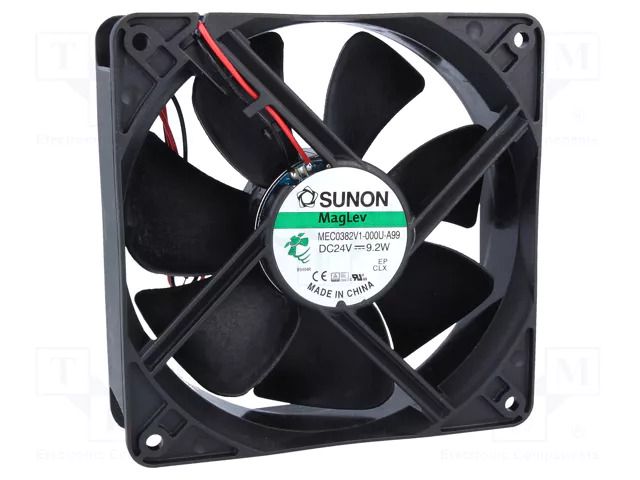

Fan: DC; axial; 24VDC; 120x120x38mm; 234.4m3/h; 48dBA; Vapo; 24AWG SUNON
Product Code: MEC0382V1-A99
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 24VDC; 120x120x38mm; 234.4m3/h; 48dBA; Vapo; 24AWG SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 24VDC; 120x120x38mm; 234.4m3/h; 48dBA; Vapo; 24AWG
Useful information
Supplier parameters
Product code
MEC0382V1-A99
Additional functions
Autorestart
Cable length
0.33m
Current and power consumption tolerance
±15%
Current rating
0.383A
Enclosure material
thermoplastic
Fan dimensions
120x120x38mm
Fan efficiency
234.4m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
Vapo
Kind of fan
axial
Leads
lead x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
48dBA
Operating temperature
-10...70°C
Operating voltage
10...27.6V DC
Power consumption
9.2W
Rotational rate/speed
3100 (±10%)rpm
Static pressure
9.14mm H<sub>2</sub>O
Supply voltage
24V DC
Type of fan
DC
Wire size
24AWG
Brand
SUNON
Supplier's product code
MEC0382V1-A99
Product ID
U-255213
