Product description

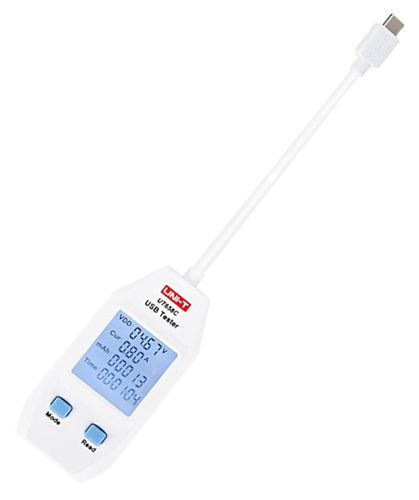

UT658 Series USB Testers
The second generation UT658 series USB testers can inspect USB chargers, portable power sources, USB type A and C cables and other electronic charging devices. UT658 measures output voltage, current, energy, capacity, circuit equivalent resistance, D+ and D- voltages of USB data cables. This series is designed to be precise, reliable, stable, and portable. They are great tools for applications such as manufacturing veriο¬cation, engineering testing, and DIYers.
Models in UT658 series: UT658A, UT658C, UT658DUAL, UT658LOAD
Features of UT658 Series USB Testers
Certifications: CE, UKCA
β Type-A/C interface
β CE certification
β 10 sets of data storage
β Loop equivalent resistance measurement (1-480Ξ©)
β Same screen shows voltage, current, power, capacity, etc.
β Support fast charge protocol
Specifications of UT658 Series USB Testers
|
Specifications |
Description |
UT658A |
UT658C |
UT658DUAL |
UT658LOAD |
|
Input & Output ports (Type A) |
β |
β |
β |
||
|
Input & Output ports (Type C) |
β |
β |
|||
|
Data/charging protocol |
2.0/3.0 |
2.0/4.0 |
2.0/(3.0/4.0) |
2.0/3.0 |
|
|
Voltage range |
4~24VDC, resolution: 0.01V |
β |
β |
β |
β |
|
Current range (Type-A) |
0.05~3ADC, resolution: 0.01A |
β |
β |
β |
|
|
Current range (Type-C) |
0.05~5ADC, resolution: 0.01A |
β |
β |
||
|
Capacity |
0~99999mAh, resolution: 1mAh |
β |
β |
β |
β |
|
Energy |
0~1000Wh |
β |
β |
β |
β |
|
Circuit equivalent resistance measurement |
1~480Ξ© |
β |
β |
β |
β |
|
USB data cable voltage (D+, D-) |
0~3.3V |
β |
β |
β |
β |
|
Data storage |
10 sets |
β |
β |
β |
β |
|
Electrical load (UT658LOAD only) |
0.5A, 1A, 2A, 3A (Max power: 60W) |
β |
|||
|
Maximum recording time |
99h, 59min, 59sec; resolution: 1s |
β |
β |
β |
β |
|
Fast charge protocol (Type-A) |
QC 3.0 fast charge protocol |
β |
β |
β |
|
|
Fast charge protocol (Type-C) |
QC 4.0 fast charge protocol |
β |
β |
||
|
General Characteristics |
|||||
|
Product color |
White |
||||
|
Product net weight |
UT658A/C: 50.6g; UT658DUAL: 65.8g; UT658LOAD: 114.4g |
||||
|
Product size |
UT658A/C: 93mm x 45mm x 13mm; UT658DUAL: 93mm x 55mm x 13mm;UT658LOAD: 122mm x 53mm x 27mm |
||||
|
Standard individual packing |
Gift box, English manual |
||||
|
Standard quantity per carton |
60pcs |
||||
|
Standard carton measurement |
UT658A/C/DUAL: 280mm x 220mm x 225mm; UT658LOAD: 320mm x 300mm x 225mm |
||||
|
Standard carton gross weight |
UT658A/C: 4kg; UT658DUAL: 5.5kg; UT658LOAD: 9kg |
||||
Specifications
Experimental product description generated by artificial intelligence
UNI-T USB Power Tester
Accurately measure the power of your USB devices with the UNI-T USB Tester. This versatile tool allows you to check the input and output power of your USB Type-C and Type-A devices.
Key Features:
- Precise Measurement: Measures capacity from 0 to 99999 mAh and energy from 0 to 1000 Wh.
- Dual Compatibility: Supports both USB Type-C and Type-A ports.
- Reliable Performance: Provides accurate readings for efficient power management.
- Essential Tool: Ideal for testing power banks, chargers, and other USB devices.
What Makes This UNI-T USB Power Meter the Right Choice?
This USB power analyzer is a must-have for anyone who needs to accurately measure the power output of their USB devices. Its dual compatibility and wide measurement range make it suitable for a variety of applications. Choose the UNI-T USB Tester for reliable performance and precise readings.
Applications:
- Testing USB power banks
- Analyzing charger output
- Verifying device power consumption
- Troubleshooting power-related issues
Technical Specifications:
| Parameter | Value |
|---|---|
| Input/Output Ports | Type-C; Type-A |
| Capacity | 0~99999mAh |
| Energy | 0~1000Wh |
Note: Specific details regarding color and other specifications are not available at this time.
