Product description

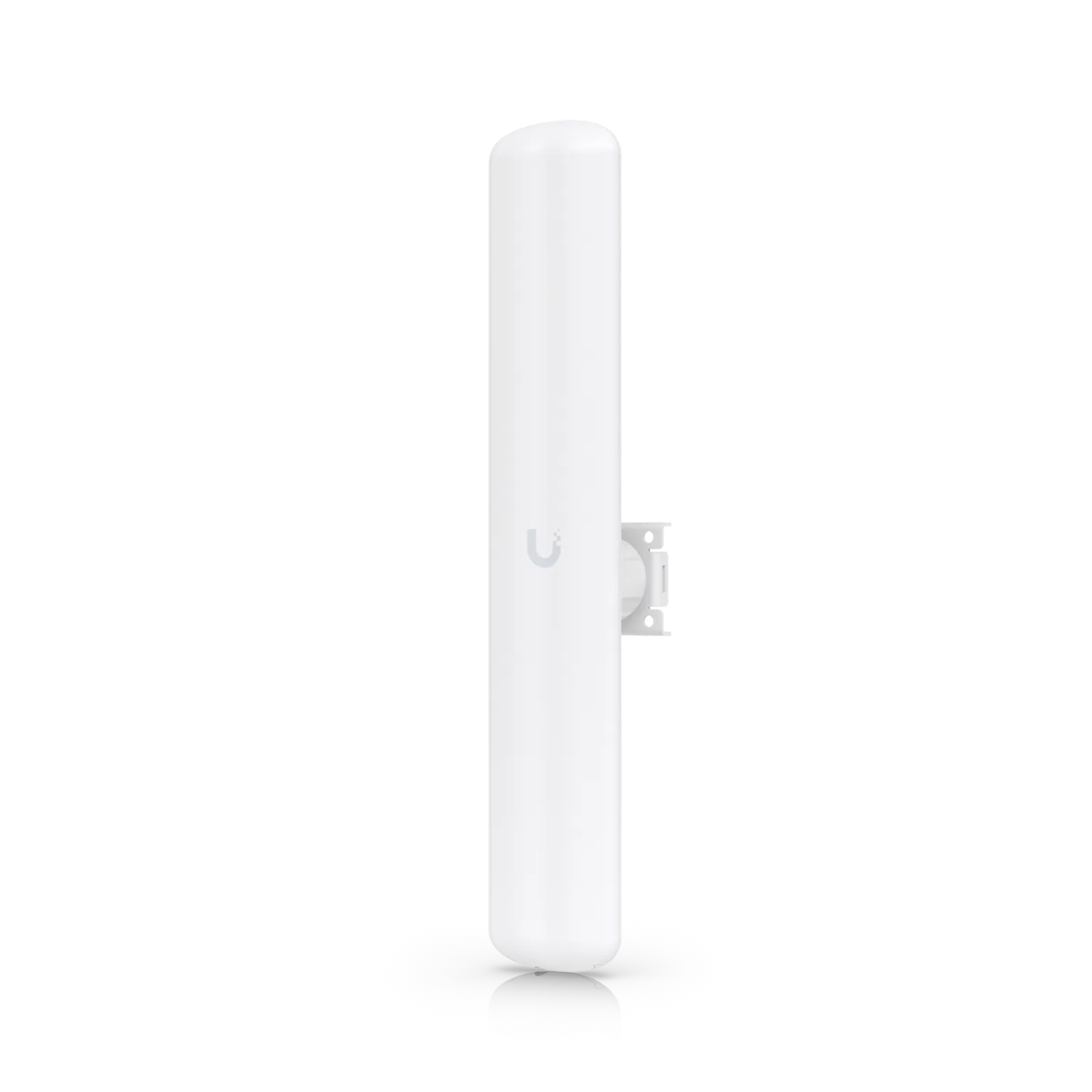

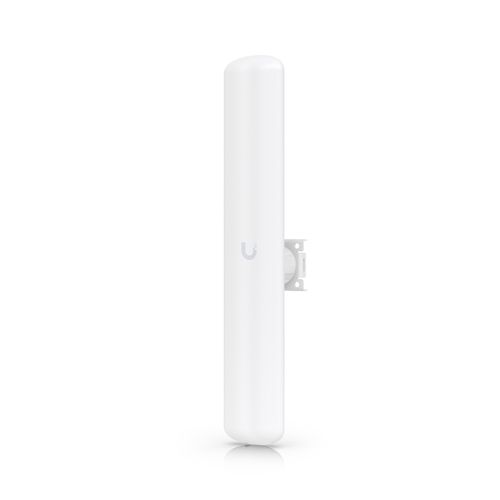

Ubiquiti LAP-120 | CPE | liteAP AC, 5GHz, MIMO, 1x RJ45 1000Mb/s, 16dBi, 120 degrees (replacement for LBE-5AC-16-120-EU), UBIQUITI
Specifications
Supplier product description
LiteAP AC provides up to 450+ Mbps of actual throughput
The device has a simple and quick installation, no tools are needed for assembly. LiteAP AC provides high throughput and it has a lightweight, elegant antenna with built-in radio.
Sectoral coverage
LiteAp ac has a 2x2 MIMO antenna and communicates with many airmax ac CPE antennas in a 120° coverage area.

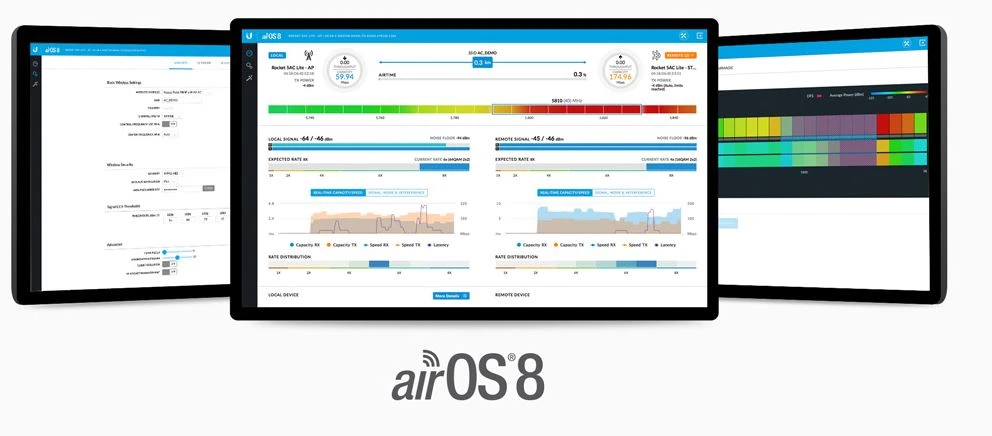

Now with airOS 8
airOS®8 offers advanced features, including handling of the airMAX ac protocol, real-time signal analysis and a completely new design for enhanced functionality.

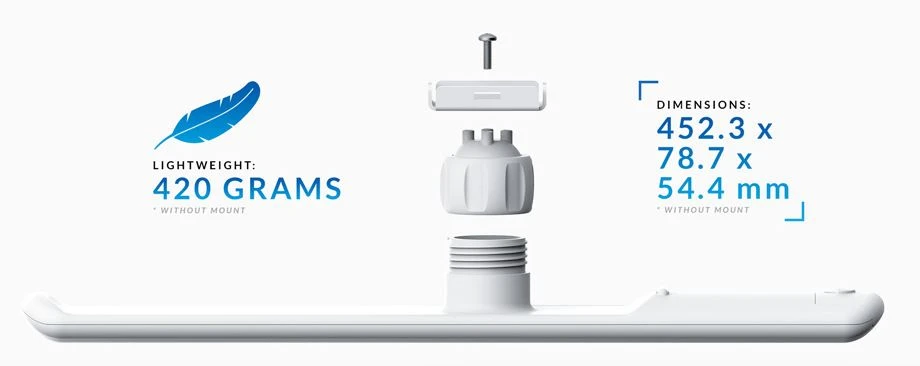

Lightweight and elegant design
LiteAP ac has a lightweight antenna with integrated radio with elegant and high performance design.

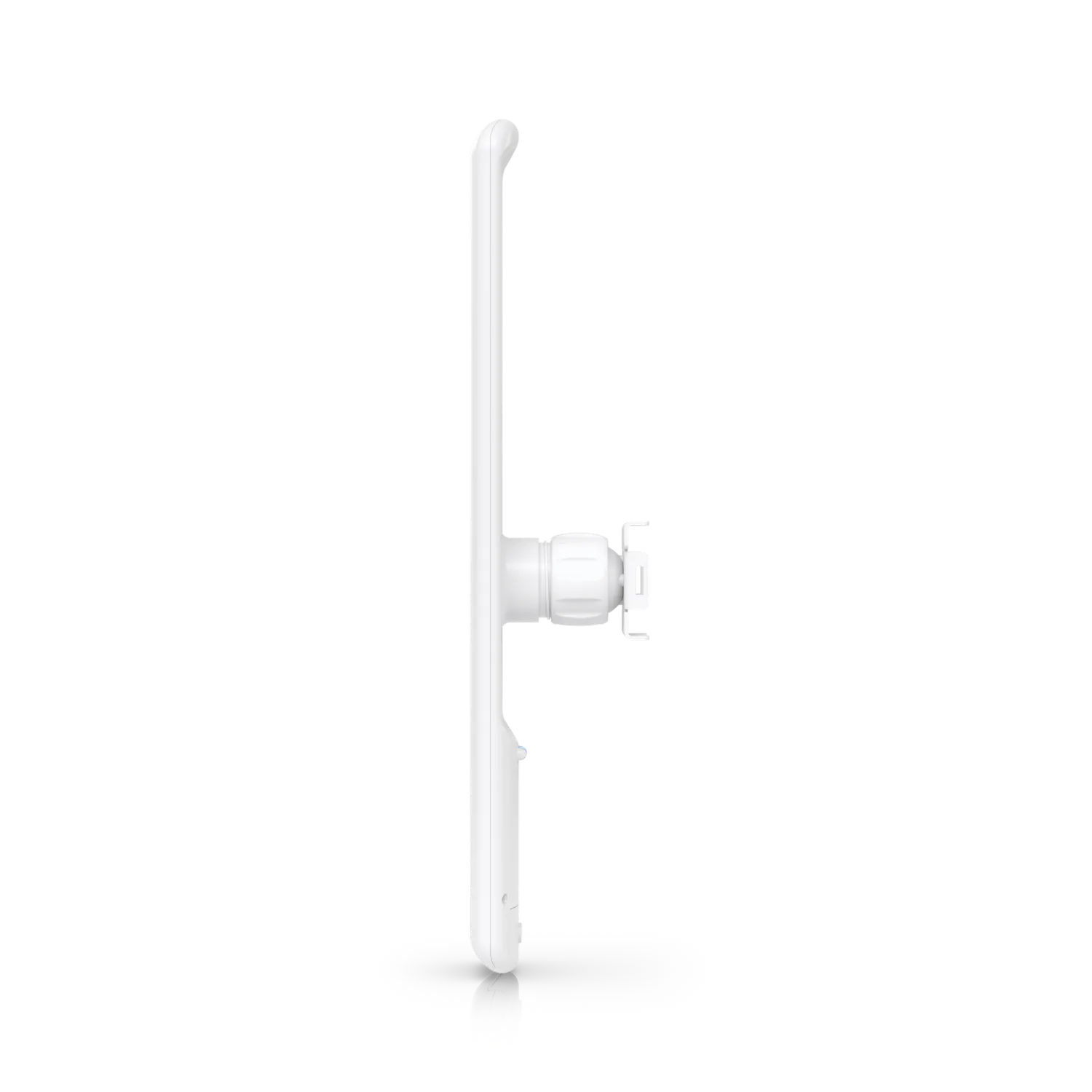

Flexibility of installation
Thanks to the freedom of adjustment in three axes, LiteAP ac can be mounted in seconds.
| LAN standard | Gigabit Ethernet 10/100/1000 Mb/s |
| Maximum wireless transmission speed | 450 Mb/s |
| Number of LAN ports | 1x 10/100/1000BaseTX (RJ45) |
| Operating frequency | 5 GHz |
| Antenna gain | 11dBi - 20dBi |
| Antenna gain level (max) | 16 |
| Antenna type | MIMO directional antenna |
| Bandwidth note | 5150 - 5875 |
| Built-in processor | Yes |
| Cables included | AC |
| Cabling technology | 10/100/1000Base-T(X) |
| Certification | FCC, IC, CE |
| CPU frequency | 533 MHz |
| Depth | 54.4 |
| Device type | Client device |
| Frequency band | 5 |
| Harmonized System (HS) code | 85177100 |
| Height | 452.3 |
| Horizontal beamwidth | 120° |
| Internal memory | 64 |
| MIMO Type | 2x2 |
| Mounting | Pole |
| Mounting kit | Yes |
| Operating relative humidity (H-H) | 5 - 95 |
| Operating temperature (T-T) | -40 - 70 |
| Power consumption (max) | 7 |
| Power source type | PoE |
| Processor frequency | 533 |
| Processor model | Atheros MIPS 74Kc |
| Product colour | White |
| Quantity per pack | 1 |
| Quick installation guide | Yes |
| RAM memory | 64MB |
| Sustainability certificates | RoHS |
| Type of device power supply | Passive PoE |
| Weight | 420 |
| Width | 78.7 |
Supplier parameters
Product code
LAP-120-EU
Brand
UBIQUITI
Supplier's product code
LAP-120-EU
Product ID
U-3955425
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
