Product description

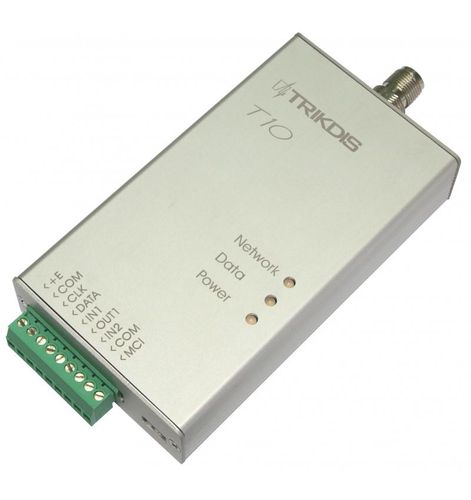

Transmitter T10
Specifications
SKU
U-3023675
Product code
RMT10
Supplier product description
- T10 is a data transmitting device for transmitting information of intruder and fire alarm control panel to monitoring and alarm receiving centre (MARC) at a licensed VHF radio frequency
- Transmits information by VHF radio frequency
- Can transmit by two radio frequencies in parallel
- Multiprotocol encoding
- Transmits information of Paradox, DSC, Caddx or Pyronix control panel's data bus
- Transferred information corresponds to codes of Contact ID
- 2 external inputs
- Power supply control
- Setting of configuration via USB
Power supply | 12,6 VDC, permissible variations 10-15 V |
| Current | max 60 mA (idle running), up to 800 mA (transmitting mode) |
Operating frequency | 146-174 MHz (VHF) |
| The number of operating frequencies | 2 |
Output power | 4,5 W ± 1,5 dB |
Output resistance | 50 Ω |
Spurious emission | Meets the requirements of EN 300 113 |
Transmitting duration | 60-400 ms depends on transmitting protocol |
Repeating | 1-9 times |
Memory | 100 messages |
Inputs | 2, set one of NC or NO or EOL type |
Output | 1 OC type, switching voltage 30 VDC, current 0,5 A |
Setting of configuration | via USB port |
Operating environment | temperature -20 °C to 55 °C, relative air humidity 90 % (+20 °C) |
Dimensions | 65 x 135 x 25 mm |
| Weight | 0,15 kg |
