Features :
Thermal camera 120x90, -20℃~400℃, 50º*38º, 25Hz; iOS,UNI-T
Product Code: UTi120MS
New
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description

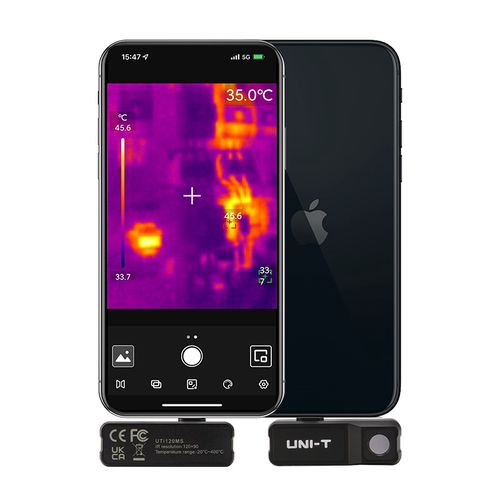

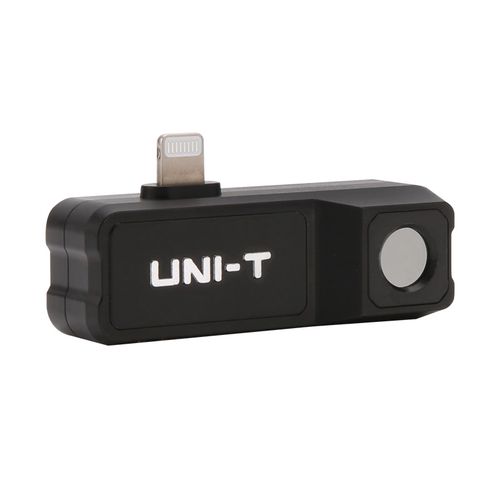

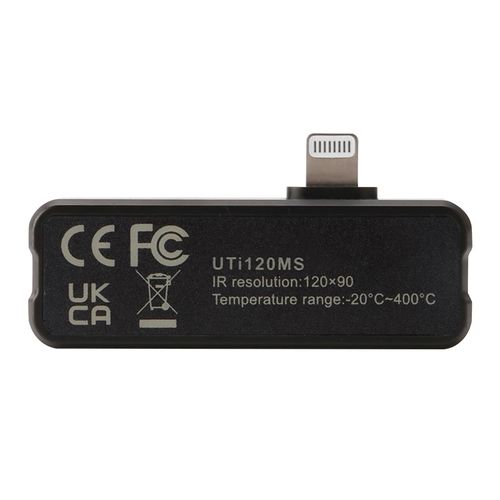

Smartphone Thermal Camera Module for iPhone
UTi120MS is a professional smartphone thermal camera module for iPhone, which is compact, portable, and easy to operate through connecting with mobile phones. UTi120MS provides clear image with a fast response, and can also detect temperature up to 400℃. Users can troubleshoot HVAC problems or investigate heat source issues around the house faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners,outdoor lovers, engineers, contractors and builders etc.
- IR resolution: 120×90
- Temperature measurement range: -20℃to 400℃ / -4℉ to 752 ℉
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- On screen analyzer: Point 6/ Line 6/Rectangle 6/Circle 6
- Image capture
- Video recording
- Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
- Phone: iPhone (USB Lightning)
- 1m drop proof
Product Specifications of UTi120M
| Technical Data | |
| IR resolution (Pixels) | 120×90 |
| Field of view(FOV) | 50°×38° |
| Thermal sensitivity(NETD) | ≤60mK @25℃ |
| Spatial resolution(IFOV) | 7.3mrad |
| Frame rate | ≤25Hz |
| Spectral range | 8~14µm |
| Focus | Focus free |
| Lens focal length | 2.28mm |
| Temperature measurement range | -20℃ ~ 400℃ |
| Accuracy | ±2℃ or ±2% whichever is greater |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| Functions | |
| Color palettes | 7 (White hot, Lava, Ironbow,Black hot, Red hot, Rainbow, Rainbow HC) |
| Image modes | Thermal,Fusion,PIP |
| On screen analyzer | 6 Points/6 Lines/6 Rectangles/6 Circles |
| Hi/Lo temperature alarm | √ |
| Video recording | √ |
| General Characteristics | |
| USB | Lightning |
| Drop proof | 1m |
| Image/Video storage format | JPEG, MP4 |
| Certificates | CE,UKCA,FCC,RoHS,MFi |
| Product net weight | 25g |
| Product size | 53mm×18.2mm×18.5mm |
| Packing Details | |
| Standard accessories | English manual, Documents download operation guide card |
| Standard individual packing | Gift box |
| Standard Qty per carton | 20pcs |
| Standard carton size | 290mm×265mm×325mm |
| Standard carton G.W. | 4.8kg |
Useful information
Specifications
Description generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligence
Experimental product description generated by artificial intelligence
UNI-T Thermal Imaging Camera: Precise Temperature Measurement
This UNI-T Thermal Camera, a high-quality infrared camera, offers precise temperature readings for various applications. Its robust design and advanced features make it a reliable tool for professionals and enthusiasts alike.
Key Features and Specifications
- Brand: UNI-T
- Resolution: 120x90 pixels
- Temperature Range: -20℃ to 400℃
- Field of View: 50º x 38º
- Refresh Rate: 25Hz
- Compatibility: iOS
Applications
This thermal imager is suitable for a wide range of uses, including:
- Building inspections (detecting heat loss)
- Electrical maintenance (identifying overheating components)
- Industrial applications (monitoring equipment temperature)
- Research and development
Why Choose This Thermal Camera?
The UNI-T Thermal Camera provides accurate and reliable temperature readings, thanks to its high-resolution sensor and wide temperature range. Its compact design and iOS compatibility make it easy to use and transport. Whether you're a professional needing precise measurements or an enthusiast exploring thermal imaging, this camera is a valuable tool.
Product Details
| Parameter | Value |
|---|---|
| Model | Thermal Camera 120x90, -20℃~400℃, 50º*38º, 25Hz; iOS |
| Category | Infrared Cameras |
This infrared camera is a versatile and reliable tool for various temperature measurement needs. Its user-friendly design and advanced features make it a top choice for professionals and hobbyists.
