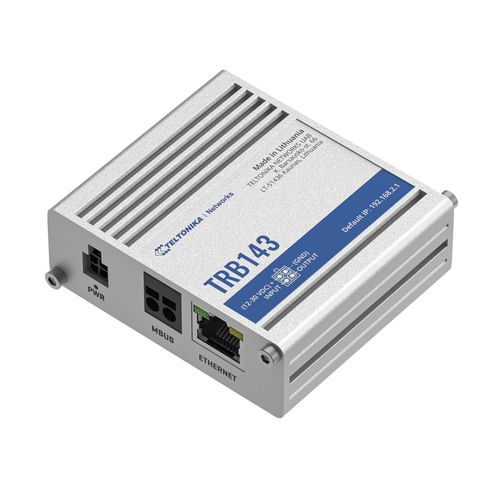

Teltonika introduces the new TRB143 industrial gateway!
The gateway is specifically designed for telemetry and utility monitoring applications, with M-Bus support. LTE Cat 4 cellular and wired connectivity enhances the smart metering process by providing data transmission of key meter readings. In addition, the TRB143 can connect up to 250 slaves and use the M-Bus interface to power up to 6 devices.
Key features of Teltonika TRB143
Necessary interfaces
This device has one Gigabit Ethernet port and a pair of digital I/Os, making it easy to apply to a myriad of environmental performance monitoring scenarios.
Ease and security of configuration
Remote monitoring and configuration are easy and secure with software security features such as a pre-configured firewall and Open VPN, as well as FOTA compatibility, SMS control and Teltonika Networks' own remote management system.
| 4G LTE category | 4 |
| Antenna connector type | SMA |
| Antenna type | External |
| Antennas quantity | 1 |
| Built-in processor | Yes |
| Built-in processor | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Certification | CE/RED, EAC, RoHS, WEEE Draft ETSI EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0 EN 61000-4-2:2009 EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2 EN 61 |
| Control display unit | No |
| Data link protocols | HTTP(S), MQTT, Azure MQTT, Kinesis |
| Data network | 2G, 3G, 4G |
| DC input voltage | 9 – 30 |
| DC input voltage | 12 – 30 |
| Depth | 18 |
| Depth | 73 |
| DMZ support | Yes |
| Dynamic DNS (DDNS) | Yes |
| Dynamic DNS (DDNS) | Yes |
| Enclosure International Protection (IP) code | IP30 |
| Enclosure material | Aluminium |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 |
| Firewall security | Yes |
| Firewall security | Yes |
| Flash memory | 512 |
| Height | 60 |
| Height | 25 |
| Internal memory | 128 |
| Internal memory | 256 |
| Internal memory type | DDR3 |
| International Protection (IP) code | IP30 |
| LED indicators | Yes |
| MAC address filtering | Yes |
| Management protocols | HTTP/HTTPS, JSON-RPC, RMS |
| Manual | Yes |
| Mobile network generation | 4G |
| NAT functionality | NAT, NAT-T |
| Network address translation (NAT) | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u |
| Number of processors installed | 1 |
| Number of simultaneous SIM cards | 1 |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | -40 - 75 |
| Power consumption (max) | 6 |
| Power consumption (typical) | 3 |
| Power over Ethernet (PoE) | Yes |
| Processor family | ARM Cortex |
| Processor frequency | 1200 |
| Processor frequency | 1300 |
| Processor manufacturer | ARM |
| Processor model | Cortex-A7 |
| Product colour | Grey |
| Product colour | Steel |
| Quality of Service (QoS) support | Yes |
| Quick start guide | Yes |
| Reset button | Yes |
| Safety | IEC 62368-1:2014, EN 50385:2017, EN 62232:2017 |
| Security algorithms | 256-bit AES, DES, HTTPS, SSH, SSL/TLS |
| Short Message Service (SMS) | Yes |
| Short Message Service (SMS) | Yes |
| SIM card slot | Yes |
| SIM card type | MiniSIM |
| Supported network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSL v3, TLS, SSH, DHCP, SNMP, MQTT |
| Supported network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL) |
| USB 2.0 ports quantity | 1 |
| VLAN support | Yes |
| VPN support | OpenVPN, IPsec, GRE, PPTP, L2TP |
| WAN connection | Ethernet (RJ-45) |
| Web-based management | Yes |
| Weight | 136 |
| Weight | 145 |
| Wi-Fi | No |
| Width | 70 |
| Width | 74.5 |
| Wireless connection | Yes |
