Product description

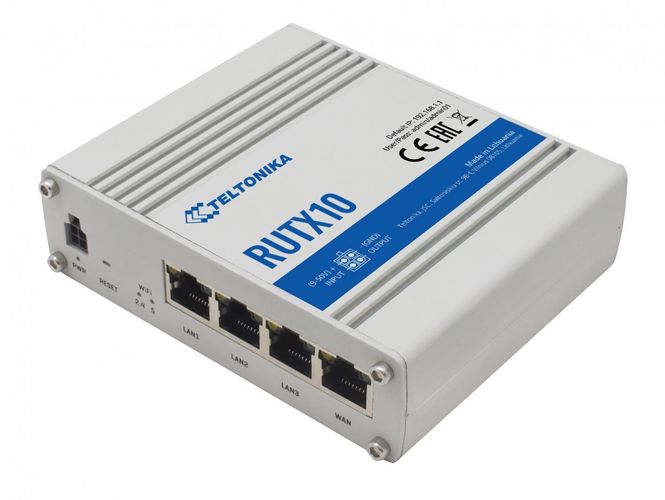

TELTONIKA industrial router LTE RUTX10
Specifications
Supplier product description
- 4 x Gigabit Ethernet ports
- Wave-2 802.11ac WIFI and „Bluetooth“ LE
- Aluminum housing
- GNSS
- Ethernet
- WAN1 x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
- LAN3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
- Wireless
- Wireless mode802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
- WiFi securityWPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
- ESSIDESSID stealth mode
- WiFi usersup to 150 simultaneous connections
- Wireless HotspotCaptive portal (Hotspot), internal/external Radius server, built in customizable landing page
- Bluetooth
- Bluetooth 4.0Bluetooth low energy (LE) for short range communication
- Network
- RoutingStatic routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
- Network protocolsTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL), DLNA
- VoIP passthrough supportH.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Connection monitoringPing Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
- FirewallPort forwards, traffic rules, custom rules
- DHCPStatic and dynamic IP allocation, DHCP Relay, Relayd
- QoS / Smart Queue Management (SQM)Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
- DDNSSupported >25 service providers, others can be configured manually
- Network backupVRRP, Wired and WiFi WAN options, each of which can be used as an automatic Failover
- SSHFSPossibility to mount remote file system via SSH protocol
- System characteristics
- CPUQuad-core ARM Cortex A7, 717 MHz
- RAM256 MB, DDR3
- FLASH storage (ROM)256 MB, SPI Flash
- Power
- Connector4 pin industrial DC power socket
- Input voltage range9 - 50 VDC, reverse polarity protection, voltage surge/transient protection
- PoE (passive)Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
- Power consumption9 W Max
- General
- Dimensions (W x H x D)115 x 32.2 x 95.2 mm
- Weight355 g
- Mounting optionsDIN rail, flat surface placement
- Casing materialAluminium housing with DIN rail mounting option
Supplier parameters
NomNr
LTERUTX10
Category
Rout
Brand
Teltonika
Supplier's product code
LTERUTX10
Product ID
U-2565063
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
