Product description
Raspberry Pi 5 version equipped with 4 GB of LPDDR4X-4267 RAM . The new Broadcom BCM2712 ARM Cortex-A76 64-bit quad-core processor offers a clock speed of 2.4 GHz . The fifth version of the popular raspberry has two microHDMI connectors, two USB 3.0 connectors and two USB 2.0 connectors, a USB C power connector. The Raspberry Pi 5 also has two 4-line MIPI DSI / CSI camera/display connectors and a PCI Express 2.0 connector. , fan connector, UART and RTC battery connectors, as well as the power button . The board also has dual-band WiFi 2.4 GHz and 5 GHz, Bluetooth 5 BLE and an Ethernet port 1000 Mb/s with the possibility of powering via PoE (PoE+ HAT pad required). The board still has a 40-pin GPIO connector (2x20 pin, 2.54 mm pitch) and a microSD memory card connector with the operating system. In addition to the standard mounting holes, you can also find holes dedicated to mounting an official radiator with a fan.

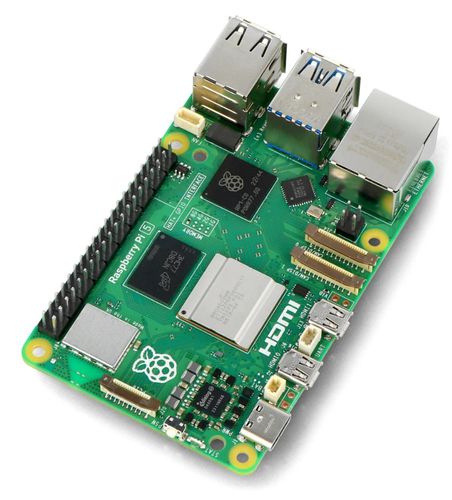

Layout and description of components on the Raspberry Pi 5 board
- Model designation
- Broadcom BCM2712 processor
- PCI Express 2.0 interface
- ON/OFF button
- Power management system
- Active cooling/radiator mounting holes
- RTC battery connector
- UART connector
- Raspberry Pi RP1 I/O controller
- Fan connector
- Ethernet and USB ports (inverted from Raspberry Pi 4)
- PoE HAT connector
- 2x 4-line MIPI DSI/CSI connectors
Communication in Raspberry Pi 5
The fifth version of raspberry still has popular interfaces known from standard PC computers. The most important of them are:
- 2 microHDMI connectors with the ability to connect two screens simultaneously and display images in 4K resolution.
- WiFi module - dual-band 2.4 GHz and 5 GHz 802.11b/g/n/ac system.
- Bluetooth LE module - popular wireless Bluetooth Low Energy (LE) 5.0 standard.
- 4 USB connectors - Raspberry Pi 5 has 2 USB 2.0 connectors and 2 USB 3.0 connectors with support for 5 Gb/s operations simultaneously, to which peripheral devices can be connected.
- Ethernet socket - enables a wired connection to the Internet with a speed of up to 1000 Mb/s. You can also power the raspberry via the Ethernet socket (PoE+ HAT required).
- GPIO - 40-pin general-purpose input/output, which includes interfaces such as I2C, SPI and UART. Used, among others, for operating LEDs, buttons, motor controllers and much more.
Raspberry Pi 5 power supply
The Raspberry Pi 5 minicomputer is equipped with a USB Type-C port for powering the unit. The fifth version of the popular raspberry requires a power supply with a supply voltage of 5 V and a current efficiency of at least 5 A. Our offer includes original power supplies and branded replacements compatible with Raspberry Pi. The maximum current efficiency of USB ports is 600 mA by default, but when a USB C power supply with Power Delivery function is detected, the limit will be automatically increased to 1.6 A.
Specifications
Experimental product description generated by artificial intelligence
Raspberry Pi 5 8GB RAM: A Powerful Single Board Computer
The Raspberry Pi 5 Model B with 8GB of RAM is the latest addition to the popular Raspberry Pi family of single-board computers (SBCs). This powerful and versatile mini-PC offers significant improvements over previous models, making it ideal for a wide range of applications.
Key Features and Specifications
- Processor: 2.4GHz Quad-core processor
- RAM: 8GB
- Brand: RASPBERRY-PI
What can you do with a Raspberry Pi 5?
The Raspberry Pi 5's increased processing power and ample RAM open up a world of possibilities. Use it for:
- Home automation projects: Control smart home devices and build custom automation systems.
- Retro gaming: Play classic video games with emulators.
- Educational projects: Learn programming, electronics, and more.
- Media center: Stream movies and TV shows.
- Robotics: Control robots and other automated systems.
- General purpose computing: Use it as a lightweight desktop computer.
Why Choose the Raspberry Pi 5 8GB?
The Raspberry Pi 5 8GB stands out due to its enhanced performance and increased memory. This makes it suitable for more demanding tasks compared to previous generations. Its versatility and extensive community support make it an excellent choice for both beginners and experienced users.
| Feature | Benefit |
|---|---|
| Powerful Processor | Handles complex tasks with ease |
| 8GB RAM | Supports demanding applications and multitasking |
| Extensive Community Support | Abundant resources and tutorials available |
This Raspberry Pi 5 Model B 8GB RAM is a great choice for anyone looking for a powerful, versatile, and affordable single board computer.
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
