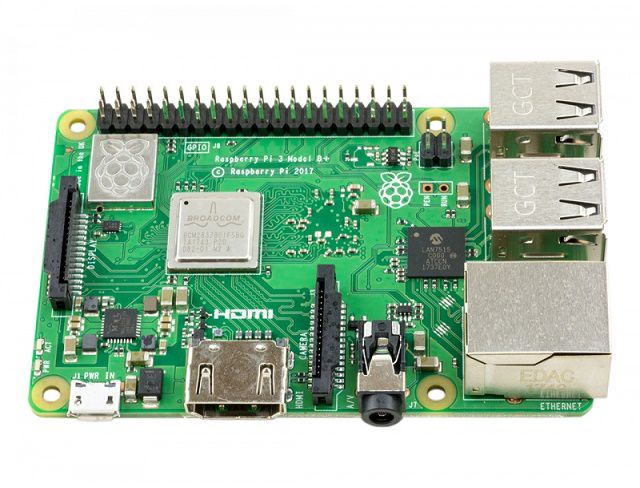

Single Board Computer, Raspberry Pi 3 Model B+, BCM2837B0 SoC, IoT, PoE Enabled

Third generation model maintains the same popular board format as the Raspberry Pi B+, 2, and 3 but boasts an even faster 1.4GHz 64Bit SoC, and the addition of 5GHz WiFi, faster ethernet & POE capability (via POE HAT sold separately).

Please Note. It is recommended to use a 2.5A Power Supply with the Raspberry Pi 3 B+. This purchase is for the Raspberry Pi 3 Model B+ Board only.

Specifications

• Processor
  • Broadcom BCM2387B0 chipset.
  • 1.4GHz Quad-Core ARM Cortex-A53 (64Bit)
• Connectivity
  • 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE
  • Gigabit Ethernet over USB 2.0 (maximum throughput 300Mbps)
  • 4 × USB 2.0 ports
• GPU
  • Dual Core VideoCore IV® Multimedia Co-Processor. Provides Open GL ES 2.0, hardware-accelerated OpenVG, and 1080p30 H.264 high-profile decode.
  • Capable of 1Gpixel/s, 1.5Gtexel/s or 24GFLOPs with texture filtering and DMA infrastructure
• Memory
  • 1GB LPDDR2
• Operating System
  • Boots from Micro SD card, running a version of the Linux operating system or Windows 10 IoT
• Dimensions
  • 85 x 56 x 17mm
• Power
  • 5V/2.5A DC via micro USB connector
  • 5V DC via GPIO header
  • Power over Ethernet (PoE) enabled (requires separate PoE HAT)

Connectors

• Ethernet
  • 10/100 BaseT Ethernet socket
• Video Output
  • HDMI (rev 1.3 & 1.4)
  • Composite RCA (PAL and NTSC)
• Audio Output
  • Audio Output 3.5mm jack
  • HDMI
  • USB 4 x USB 2.0 Connector
• GPIO Connector
  • 40-pin 2.54 mm (100 mil) expansion header: 2x20 strip
  • Providing 27 GPIO pins as well as +3.3 V, +5 V and GND supply lines
• Camera Connector
  • 15-pin MIPI Camera Serial Interface (CSI-2)
• Display Connector
  • Display Serial Interface (DSI) 15 way flat flex cable connector with two data lanes and a clock lane
• Memory Card Slot
  • Push/pull Micro SDIO
