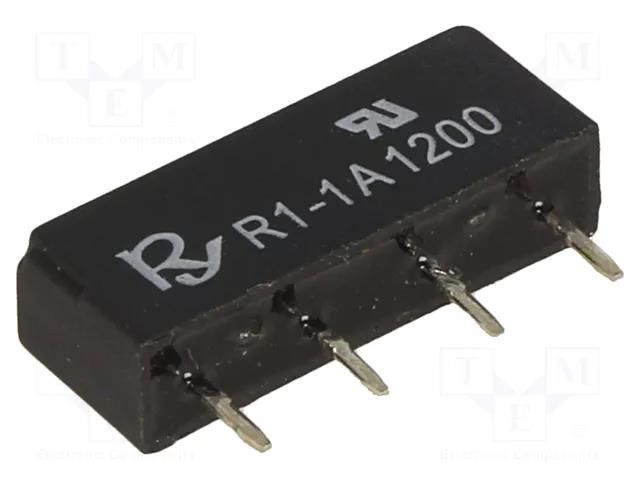

Relay: reed switch; SPST-NO; Ucoil: 12VDC; 1A; max.250VDC; 10VA Recoy/RAYEX ELECTRONICS
Product Code: R1-1A1200
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Relay: reed switch; SPST-NO; Ucoil: 12VDC; 1A; max.250VDC; 10VA Recoy/RAYEX ELECTRONICS
Useful information
Specifications
Supplier product description
Relay: reed switch; SPST-NO; Ucoil: 12VDC; 1A; max.250VDC; 10VA
Useful information
Supplier parameters
Product code
R1-1A1200
Brand
Recoy/RAYEX ELECTRONICS
Supplier's product code
R1-1A1200
Product ID
U-301253
#Promotion
maintenance_202308
Body dimensions
19x5x7mm
Case
SIL
Coil power consumption
144mW
Coil resistance
1kΩ
Coil voltage max.
20V DC
Coil voltage min.
9V DC
Contact current max.
1A
Contact material
AgCdO
Contact resistance
0.15Ω
Contacts configuration
SPST-NO
Manufacturer
Recoy/RAYEX ELECTRONICS
Mounting
PCB
Operate time
1ms
Operating temperature
-40...85°C
Rated coil voltage
12V DC
Relay series
R1
Release time
0.5ms
Switched voltage
max. 250V DC
Switching capacity
10VA
Terminal pitch
5.08mm
Type of relay
reed switch
Unit price
No
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
