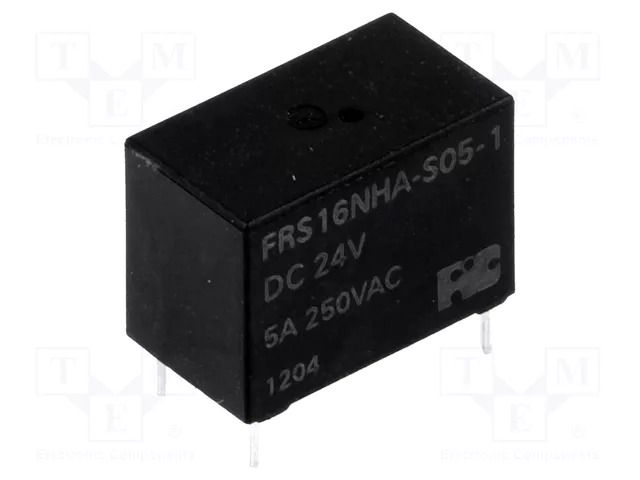

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 5A; 5A/125VAC; FRS1 FORWARD INDUSTRIAL CO.
Product Code: FRS16NHA-S51-24VDC
Brand
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 5A; 5A/125VAC; FRS1
Useful information
Supplier parameters
Product code
FRS16NHA-S51-24VDC
AC contacts rating @R
5A / 125V AC
Body dimensions
17.6x10.1x12.3mm
Coil power consumption
200mW
Coil resistance
2.8kΩ
Coil voltage min.
18V DC
Contact current max.
5A
Contact material
silver alloy
Contact resistance
50mΩ
Contacts configuration
SPST-NO
DC contacts rating @R
5A / 30V DC
Manufacturer
FORWARD INDUSTRIAL CO.
Mounting
PCB
Operating temperature
-40...85°C
Rated coil voltage
24V DC
Relay series
FRS1
Relay variant
miniature
Switched voltage
max. 60V DC
Terminal pitch
2.5mm
Type of relay
electromagnetic
Brand
FORYARD
Supplier's product code
FRS16NHA-S51-24VDC
Product ID
U-192093
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
