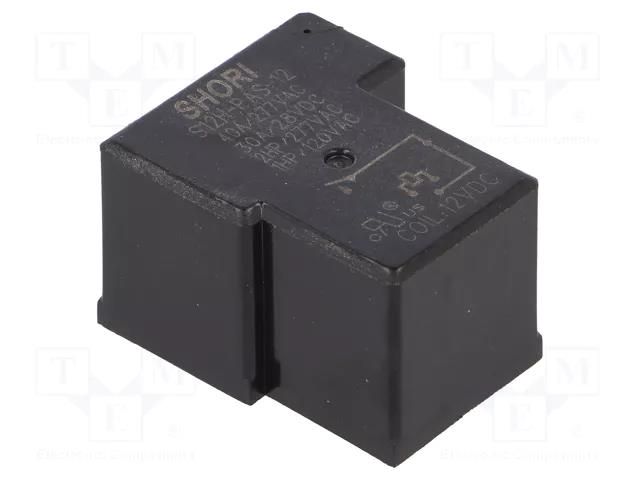

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 40A
Product Code: S12H-PAS-12
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 40A
Useful information
Specifications
SKU
U-316964
Product code
S12H-PAS-12
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 40A
Useful information
Supplier parameters
Product code
S12H-PAS-12
Supplier's product code
S12H-PAS-12
Product ID
U-316964
Body dimensions
19.5x26.8x31.9mm
Coil current
77mA
Coil power consumption
930mW
Coil resistance
155Ω
Contact current max.
40A
Contact material
silver alloy
Contact resistance
50mΩ
Contacts configuration
SPST-NO
Electrical life
10000 cycles
Leads
terminal PCB
Manufacturer
SHORI ELECTRIC
Mechanical durability
10000000 cycles
Mounting
PCB
Operate time
15ms
Operating temperature
-30...85°C
Rated coil voltage
12V DC
Relay series
S12H
Relay variant
power
Release time
10ms
Type of relay
electromagnetic
