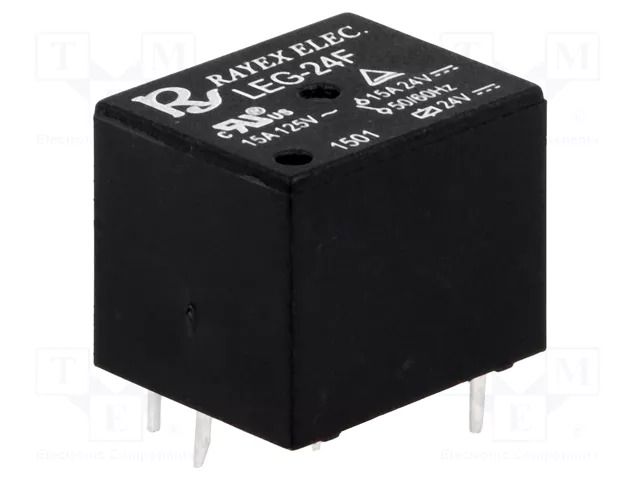

Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 15A Recoy/RAYEX ELECTRONICS
Product Code: LEG-24F
More similar products
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 15A Recoy/RAYEX ELECTRONICS
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 15A
Useful information
Supplier parameters
Supplier's product code
LEG-24F
Product ID
U-235428
AC contacts rating @R
15A / 120V AC
Body dimensions
19.5x15.8x15mm
Coil current
15mA
Coil power consumption
360mW
Coil resistance
1.6kΩ
Contact current max.
15A
Contact resistance
100mΩ
Contacts configuration
SPDT
DC contacts rating @R
15A / 24V DC
Manufacturer
Recoy/RAYEX ELECTRONICS
Mounting
PCB
Operate time
8ms
Operating temperature
-30...85°C
Rated coil voltage
24V DC
Relay series
LEG
Relay variant
miniature
Release time
8ms
Switched voltage
max. 100V DC
Terminal pitch
2mm
Type of relay
electromagnetic
Brand
Recoy/RAYEX ELECTRONICS
NomNr
LEG-24F
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
