Product description

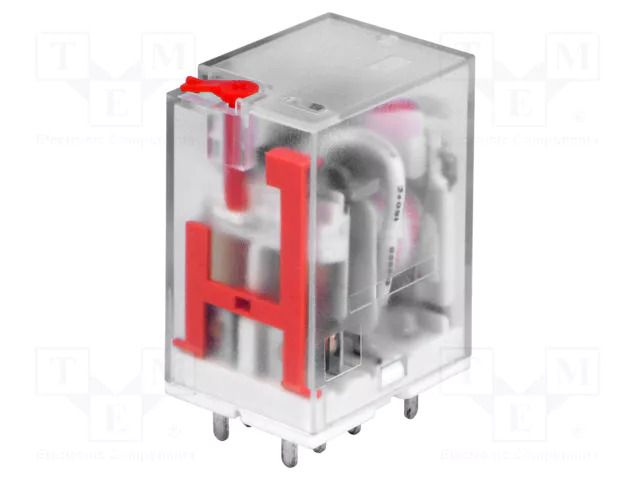

Relay: electromagnetic; DPDT; Ucoil: 230VAC; Icontacts max: 10A Recoy/RAYEX ELECTRONICS
Useful information
Specifications
Supplier product description
Relay: electromagnetic; DPDT; Ucoil: 230VAC; Icontacts max: 10A
Useful information
Supplier parameters
Product code
LB2N-230ATP
Supplier's product code
LB2N-230ATP
Product ID
U-233801
AC contacts rating @R
10A / 240V AC
Body dimensions
28x21.5x35mm
Coil power consumption
1.2VA
Coil resistance
16kΩ
Contact current max.
10A
Contact resistance
100mΩ
Contacts configuration
DPDT
DC contacts rating @R
10A / 24V DC
Design
test button
Electrical life
100000 cycles
Indication
LED
Leads
for PCB
Manufacturer
Recoy/RAYEX ELECTRONICS
Mechanical durability
10000000 cycles
Mounting
PCB
Operate time
15ms
Operating temperature
-40...60°C
Rated coil voltage
230V AC
Relay series
LB2
Relay variant
industrial
Release time
15ms
Switched voltage
max. 30V DC
Type of relay
electromagnetic
Brand
Recoy/RAYEX ELECTRONICS
